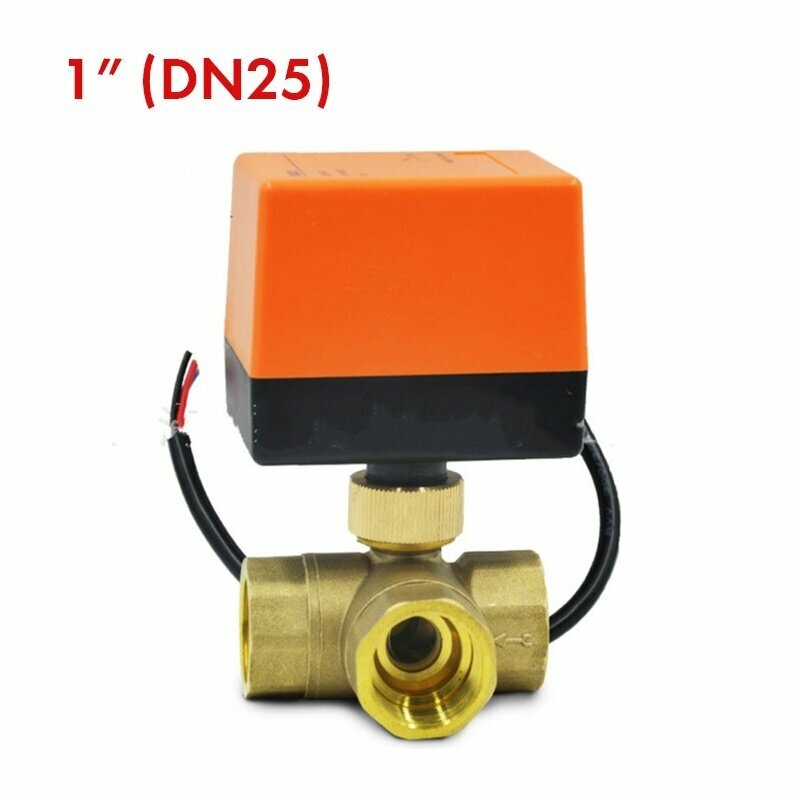

1inch Motorized Electric Brass 3 Way Ball Valves Female 3 Wire AC 220V Full Port T Type Valve DN25 (1 inch)

Specification:
Valve Type: Three Way Ball Valve
Body Material: Brass
Seal Material: PTFE
Connector Type: G Thread Female
Nominal : 1.6MPa (PN16)
Temperature: 2~94℃
Environment Temperature: 0~60℃
Voltage: AC 220V
Wire Control: 3 Wire
Consumption: 6W ( use electricity during opening or closing.)
Open/Close Time: 5~15s
Bore Type: Full Port
Enclosure Rating: IP65

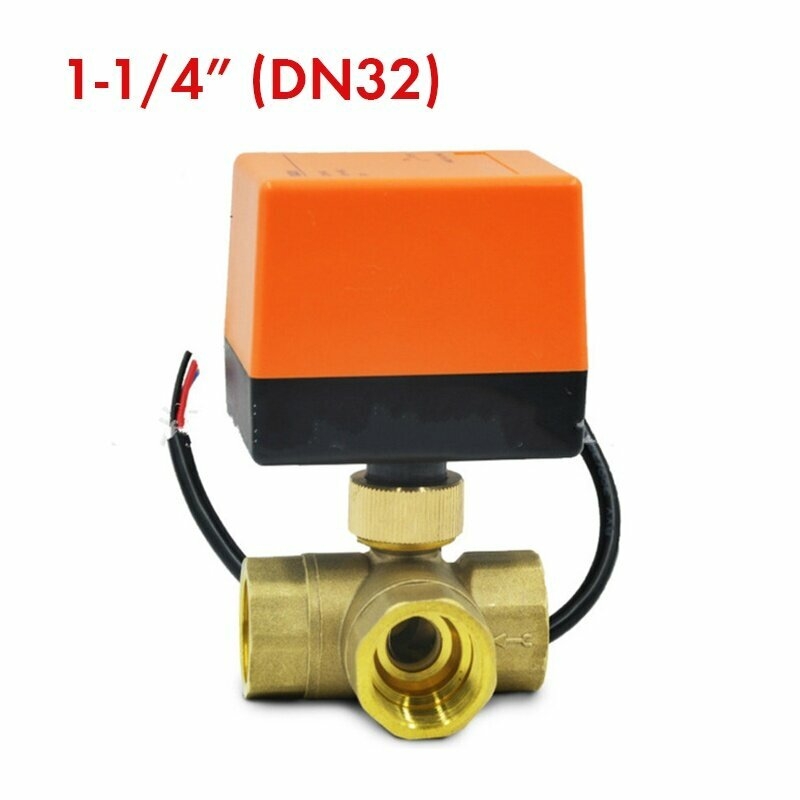

Size: 1/2(DN15), 3/4(DN20), 1(DN25), 1-1/4(DN32)

Features:
- Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
- Three Way female threaded ends for connecting to three male threaded ends.
- Will fully open or close valve in 5~15 seconds, once in position, it automatically stops using energy.
- Save energy, reduces likelihood of overheating, long service life.
