Bomge Mixer Table Sound Plate BOMGE M-12 USB Audio Interface

BOMGE M12 USB Audio Interface for PC Recording,2 Channels Audio Mixer with XLR  3.5m Microphone Jack,Sound Card USB 48V Power  for Studio,live show, Karaoke,Ultra-low, Latency Plug&Play

USB Audio Interface:

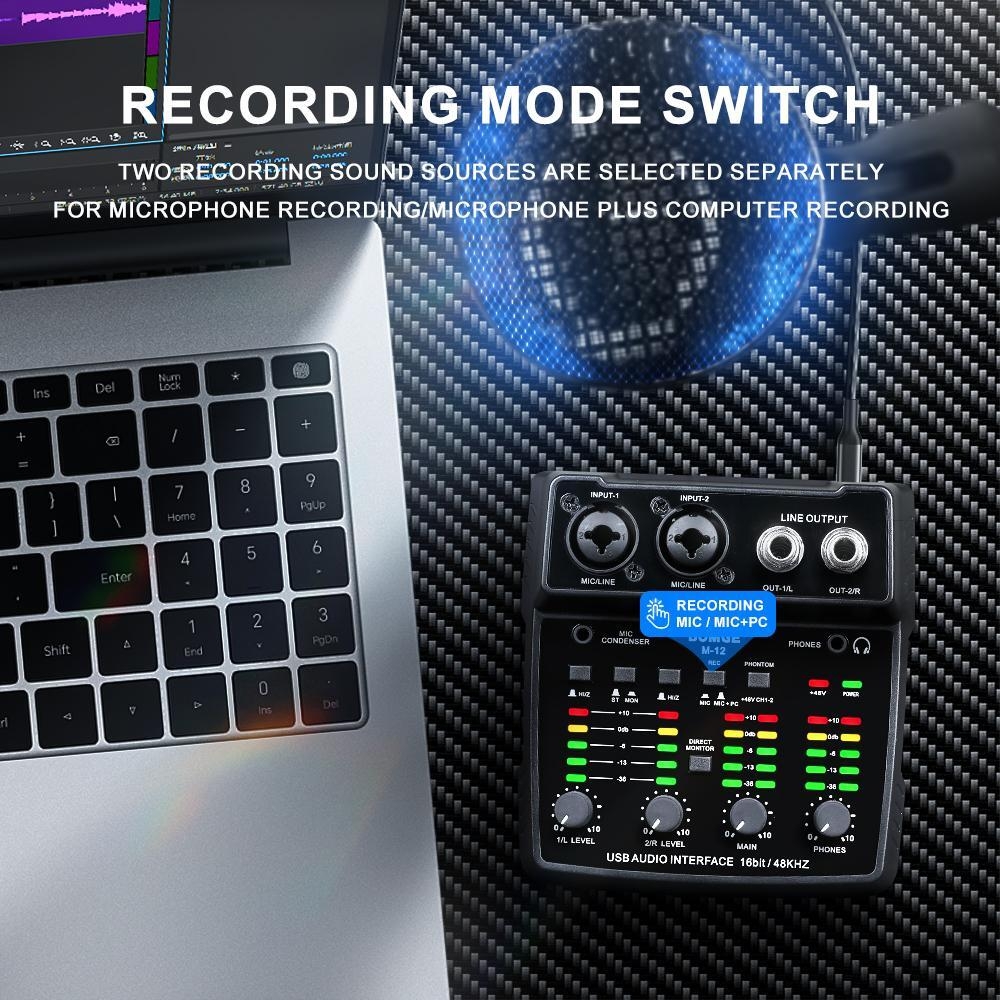

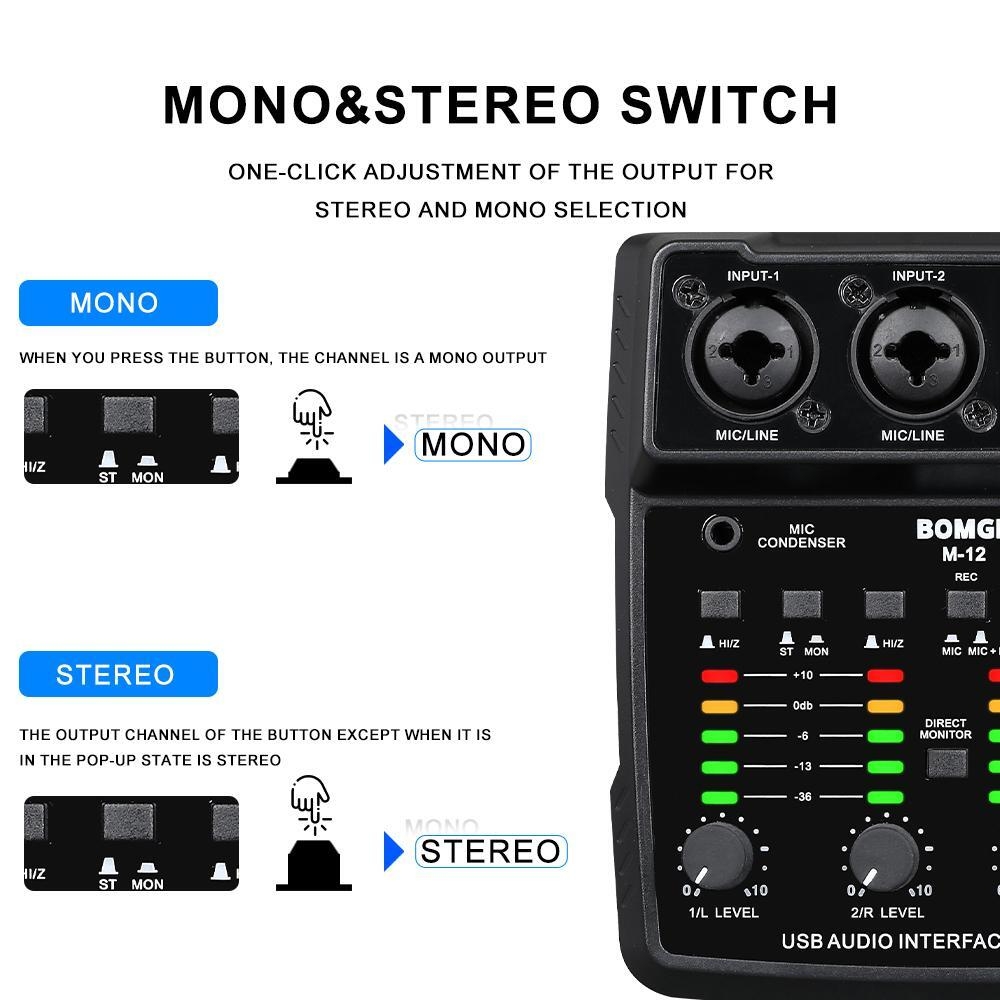

M12 Record singing or guitar and bass into the recording software through the recording software, allowing you to make your favorite music. Line 1/2 stereo output switchable mono. Each channel has its own independent volume control.

Support for guitar or bass insertion:

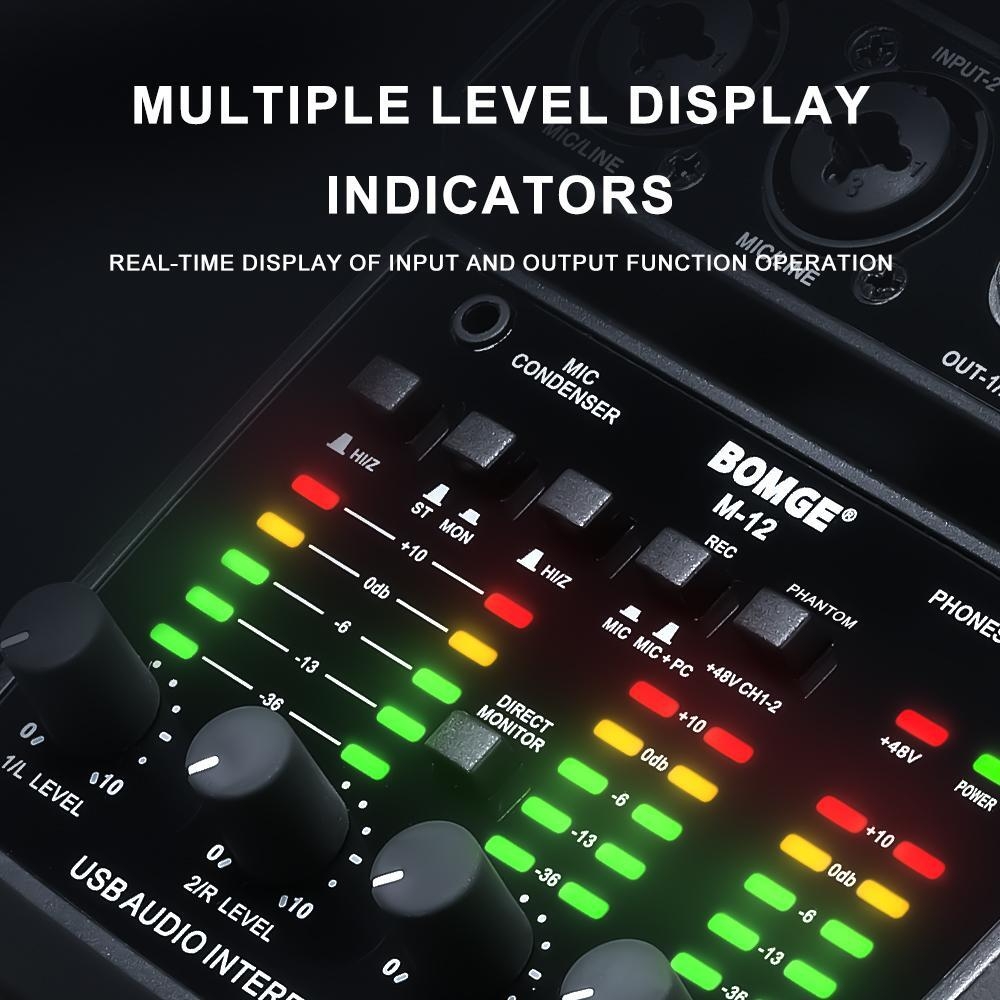

More accurate gain halo meter, the interface is equipped with -36db to 10db gain halo meter for each input and output. This feature allows you to easily connect and record guitar or bass. If the sound of the recorded music changes, it means that the volume needs to be adjusted to the appropriate level.

Input Options:

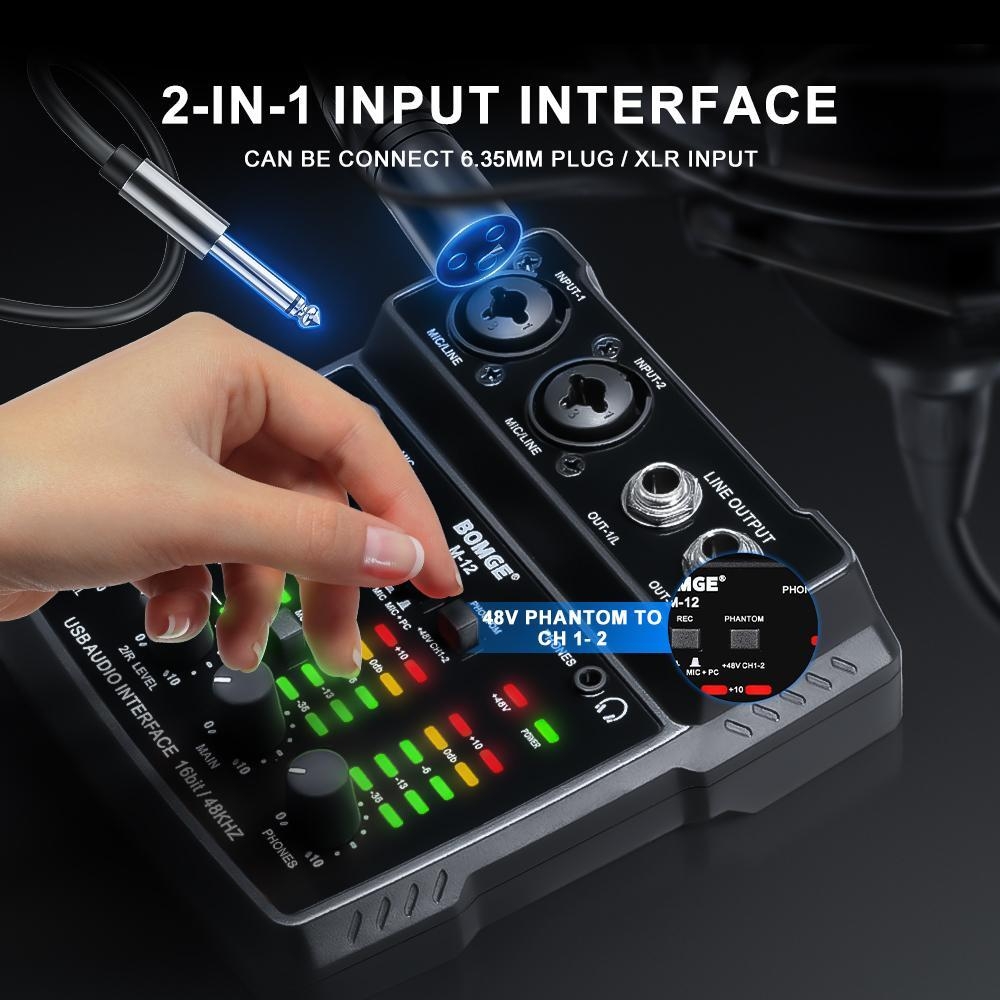

The microphone preamp input is conveniently located on the front panel and uses a standard 3-pin XLR socket. It supports 48V phantom powered microphones and other compatible devices. An additional 3.5mm microphone jack can be added for added flexibility.

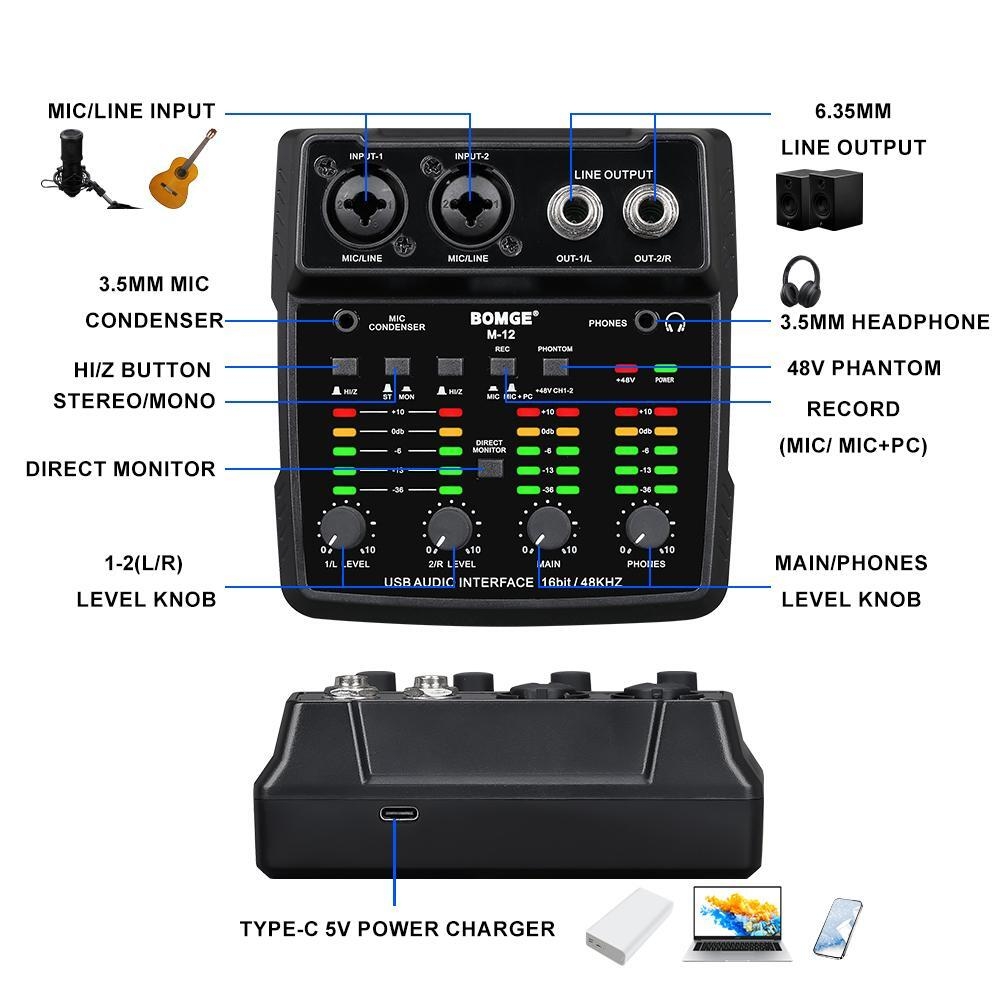

Connectivity Versatility: With 2 balanced XLR/P10 inputs, 2 L and R outputs, a P3 condenser mic input, and a headphone output, the M-12 offers a variety of connectivity options to suit your recording needs.

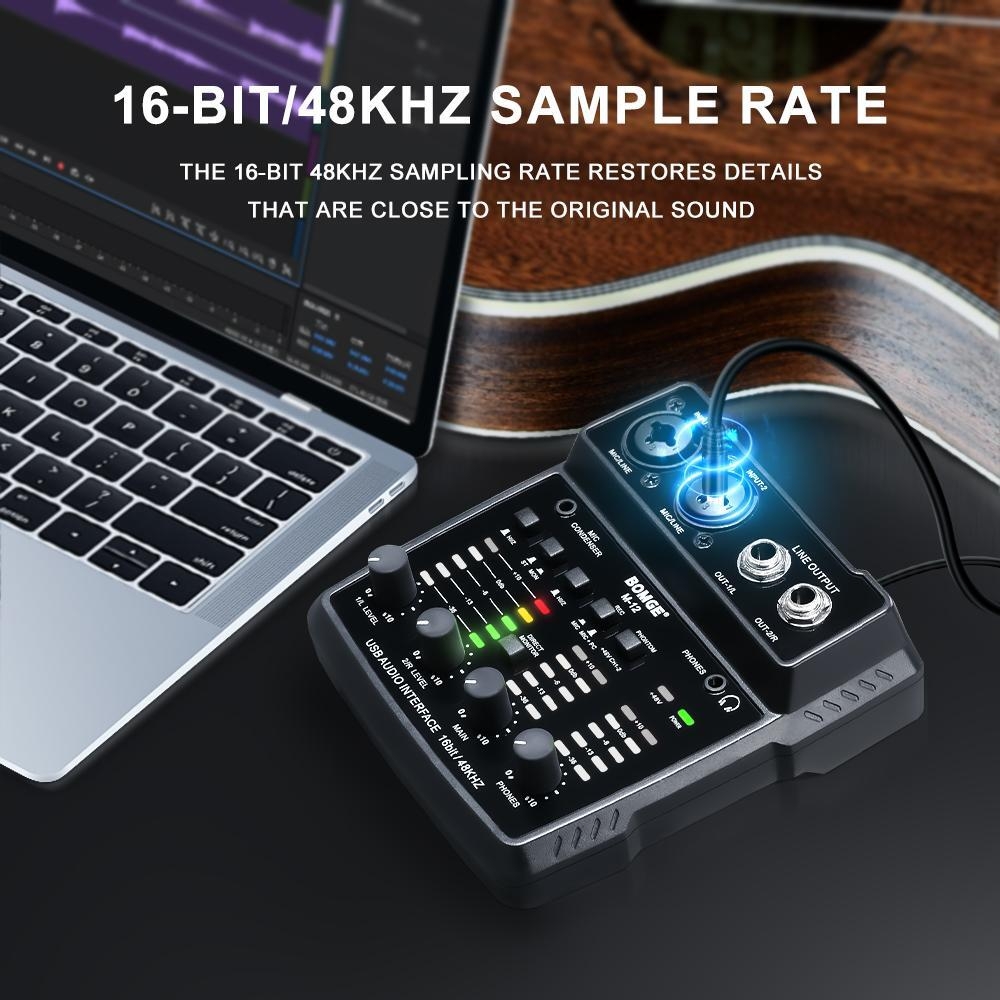

High-Performance Converter for Studio-Quality Recording: The high-performance converter of the USB audio interface allows you to record, mix, and play audio in studio quality up to 16-bit/48 kHz. This ensures that your recordings are clearer and more distinctive, capturing every detail of your music.

48V Phantom Power: The stage audio mixer is equipped with a reliable +48V phantom power supply. With its ultra-low noise design, this mixer is suitable for both beginners and studio professionals, making it an ideal choice for various application

Easy to Use: With intuitive controls and volume independence for each channel, the M-12 is easy to operate, making it perfect for beginners and studio professionals alike.

Technical Specifications:

- Mic input 1-2 (balanced):

- Frequency Response: -1/-1dB, 20Hz-20kHz

- Dynamic Range: 82dB, A-weighting

- THD+N: 0.03%, 1kHz

- Input Level: +6dBu

- Input Resistance: 4Ohms

- Total Gain: +3dB to +60dB

- HI-Z 2 input (unbalanced):

- Maximum Input Level: +3.0dBV

- Input Resistance: 1M Ohms

- Total Gain: 0dB to +40dB

- Line Input 1/2 (balanced):

- Maximum Input Level: +10dBu

- Input Resistance: -10dB to +40dB

- Main Output (balanced):

- Frequency Response: -1/-1dB, 20Hz-20kHz

- Dynamic Range: 82dB, A-weighting

- THD+N: 0.03%, 1kHz

- Maximum Output Level: +6dBu

- Output Resistance: 100k Ohms
