Product details
⚠️For DC Voltage Only
⚠️Not For 220V/230V AC Home Socket

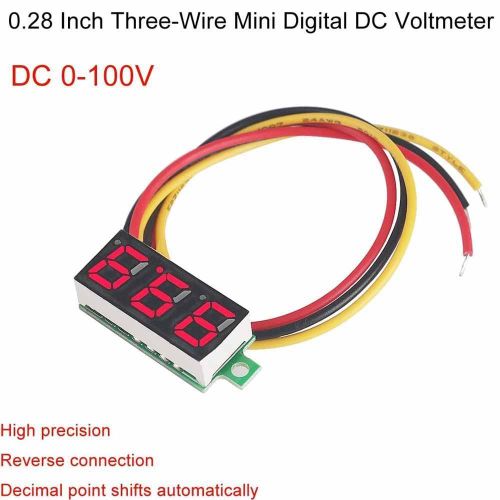

- The voltmeter is small, only 0.28 inches, range DC DC0-100V, 2 and 3-wire generic products, to break the routine voltmeter, is the latest design, can work directly on 5V, 9V, 12V, 24V and other circuits, without regulation. With three wiring, easy access to car / battery car / motorcycle car line, with reverse polarity protection function, line reversed not burn. Used to monitor battery voltage, grasp the battery voltage state, it can also be used for other products voltage measurement applications.
- Feature:
- 1. product stability, high measurement accuracy
- 2. Overall standard size, easy installation
- 3. Power supply protection circuit using a polar
- NOTE: Three-line voltage range 0-100V, but also for the use of second-line voltage is within 40V, otherwise there is a danger of burning.
- Technical Parameters:
- Operating voltage: 4.0 ~ 40V (with a reverse polarity protection function)
- Detection voltage: 0.0 ~ 100V
- Operating Current: <20mA

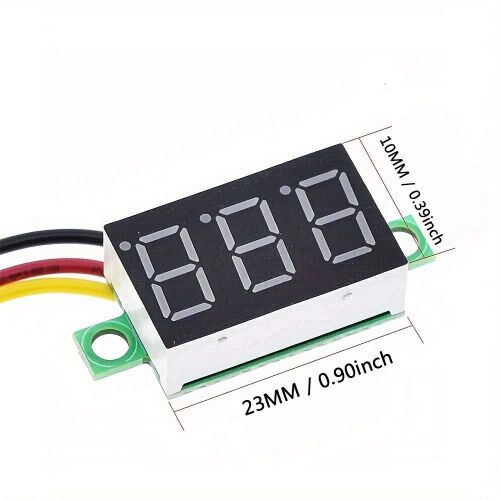

- Display: 0.28 "LED
- Measurement rate: ≥200mS / times
- Accuracy: 3 ‰
- Extreme working conditions
- Low operating voltage: + 4.0V
- Maximum working voltage: + 40V
- Working temperature: -10 ~ + 65
- Humidity: 10 to 80% (non-condensing)
- Working pressure: 80 ~ 106kPa
- Sun exposure: no direct exposure


Specifications
Key Features
【Wide Measurement Range】 Measures DC voltage from 0V to 100V; independent power supply ensures high accuracy.
【Independent Power Supply】 Requires 4V-40V input to power the display, perfect for testing low-voltage components.
【Built-in Safety】 Features Reverse Polarity Protection—it won't burn out even if the wires are connected incorrectly.

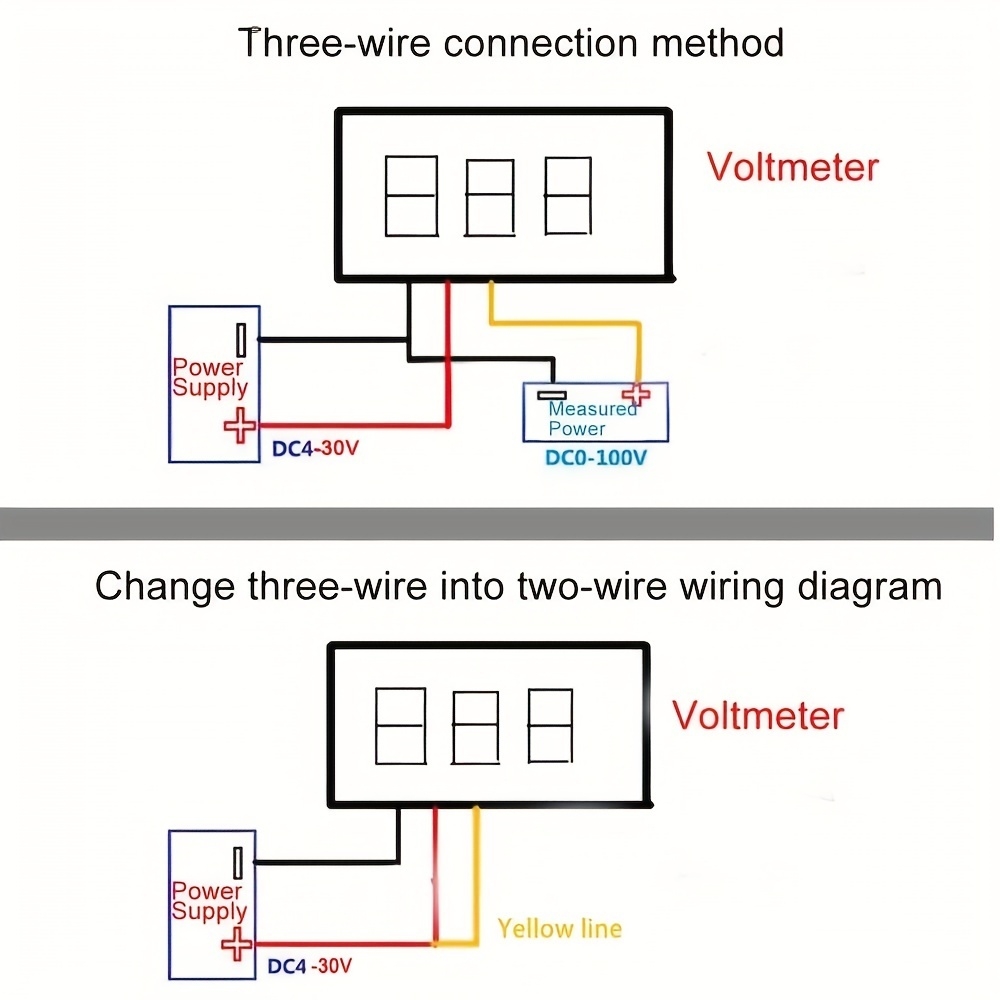

【3-Wire Design】 Red/Black for power input, Yellow for testing; the best choice for electronic DIY and inverter repairs.
【Compact & Bright】 High-brightness red LED display for clear reading in any lighting conditions.
What’s in the box
(Red display effect) Voltmeter x1
Specifications
- SKU: GE779CA5H1OGCNAFAMZ
- Production Country: China
- Weight (kg): 0.03
- Color: White
