12V Bluetooth FM Radio Car Audio Player Digital Audio Music USB/SD/AUX

FAQ:(Car Radio )

Q1.Why the car radio can't turn on?

1.Please check the Voltage of car radio:DC 12V

2.When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply

3.Replace the same type of insurance to test the car radio

Note:Please msut use our power cables to connect our car radio,it is not possible to insert the original car plug directly into our machine

Q2.Why haven't sound in car radio when playing the music?

1.When you are not using our original audio cable, please check if your audio cable is suitable for our camera

2.Please check if there is any collision between the lines

If the line is connected, there will be no sound when the speaker cable touches the speaker cable.There is also no sound when the power cord touches the speaker cable.

If the problem still here,please use a single speaker to connect a group of audio cables to test the car radio. The four speaker cables are connected separately to see if there is any sound.

Q3.Why can't search FM?

1. No radio antenna inserted.

2. Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted

3.The radio antenna on the car is broken/no effect; please replace the radio antenna and test again

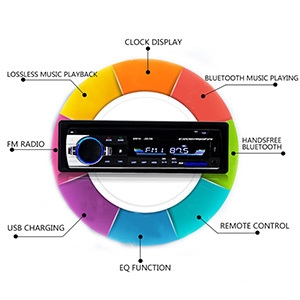

• Built-in Microphone
• Hands-free Call
• Support download phone book and view Call log

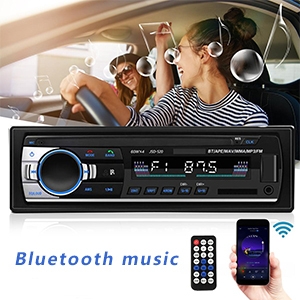

• Support bluetooth music playing
• USB socket can read U disk and play music.Support audio: MP3/WMA/WAV/APE
• The radio can read the maximum capacity of U disk and SD card is 32G

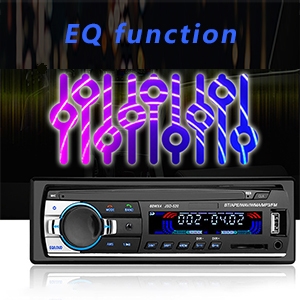

• CLASS/ ROCK/ JAZZ/ POP. BASS/effect adjustable
• Switch to EQ mode, press the big black button to select EQ

Adjust to aux mode, use the 3.5mm dedicated line to play the music in the mobile phone through the car radio

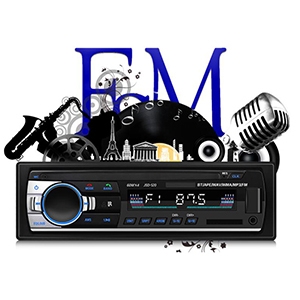

3 Ways to Search Channels.FM Tuning Range: 87.5-108MHz.You can listen to real-time radio, weather forecasts, news so that your driving is no longer boring

Support USB input/SD card input on the car radio.Fast USB charging interface, make sure your phone is fully charged

Specification:

Note: This machine is 12V machine, not according to the 24V power supply Audio

Built-in Bluetooth + Microphone.Support hands-free calls

Support advanced audio transmission mode

Support the clock indicating while power is off.

High-quality digital stereo FM radio.Support three-band radio store FM1-FM2-FM3, and can preset 18 radio stations. (Radio frequency: 87.5-108MHz)

Support USB/SD card reader.Support Audio: MP3 / WMA / APE / FLAC / WAV etc.

Support folder play function

Support breakpoint memory and ID3 play.

Support remote control.Rotary electronic volume control

MP3 play supports pause /preview/repeat/play and 10 tracks up/down selections.

Electronic type bass/treble/left and right balance/front and back balance volume control

Multiple EQ scenario mode choice: jazz, rock, pop, classical, etc.

Support mute and equal loudness (LUOD) control.

Front AUX audio input hole and rear terminal L/R audio RCA output hole.

4 track high-power output (4 high-power loudspeakers) 25W*4

Work Voltage: DC10V-14V. Output Power : 4 x 60W

Body Size: 178MM (Width)*50MM (H)*125MM (D).Shape Size: 188MM*58MM (H)
