Air duct kit, 1/4 inch (6.35 mm) outer diameter x 32.8 ft polyurethane (PU) tubing

About this product

DIY Air System - Compressed Air Outlet Kit allows you to design and install your own compressed air system. No more dragging around compressors and reconnecting hoses. It helps keep your workspace clean and organized.

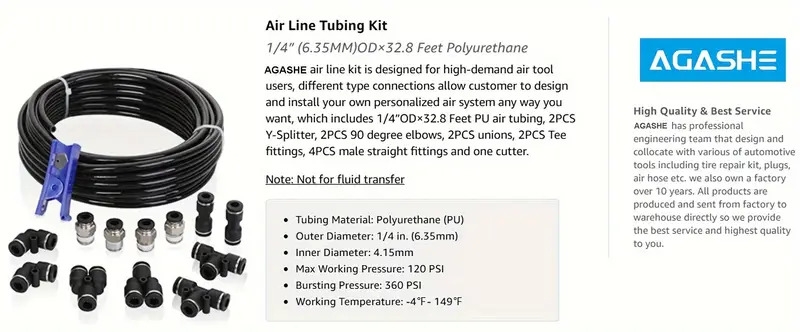

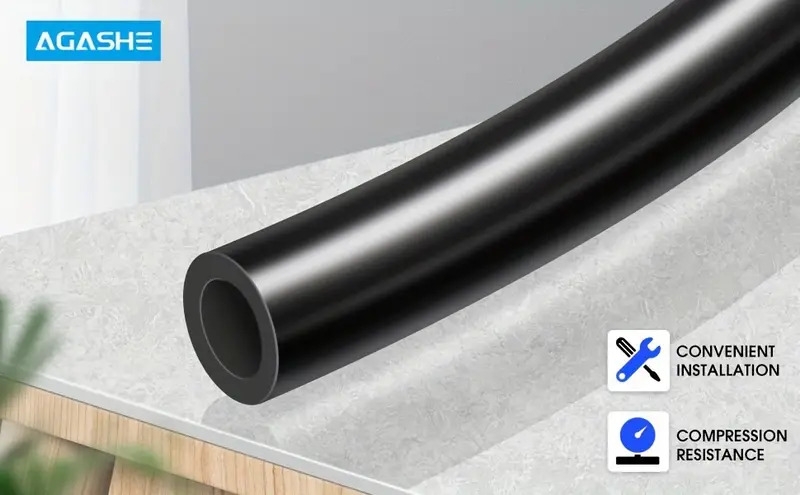

PU Hoses - Length: 32.8 feet (10 meters); Outer Diameter: 1/4 inch (6.35 mm); Inner Diameter: 4.15 mm. Maximum Working Pressure: 120 PSI; Burst Pressure: 360 PSI. Working Temperature: -4℉ to 149℉. The PU material offers high flexibility and oil resistance.

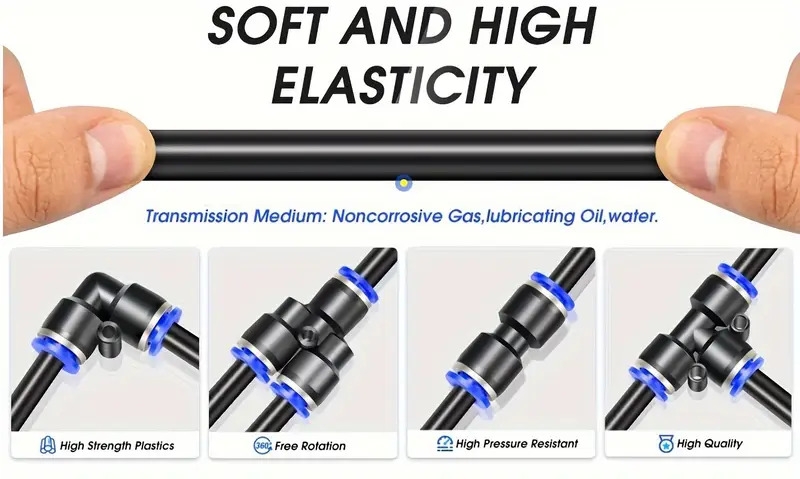

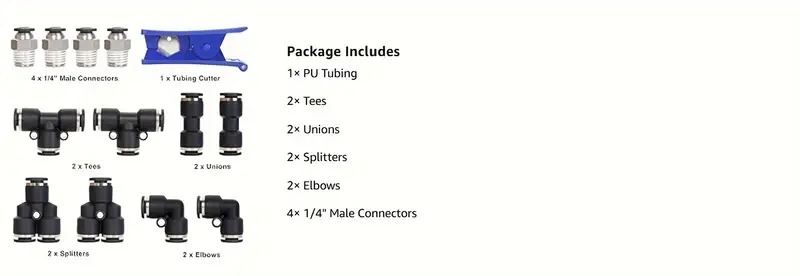

Connectors - All connectors feature a push-in design for easy disassembly and excellent sealing. The kit includes 2 splitters, 2 elbows, 2 tees, and 2 unions. Four straight male connectors are available for 1/4-inch outer diameter hoses and feature 1/4-inch NPT threads. The threads require sealing tape to prevent leaks.

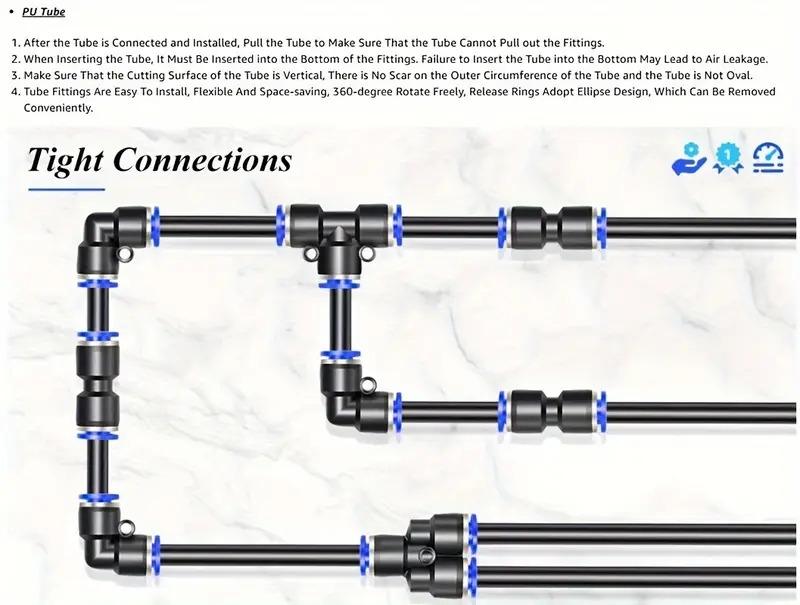

Easy to use – All fittings seal simply by pushing the tubing in, and disassembling is equally straightforward. The kit includes a cutting tool to accommodate your tubing length requirements.

Ultimate flexibility: Customers can purchase additional fittings to customize their air line installation based on space and compressed air needs. This is a perfect solution for garages, workshops, barns, and other similar locations.

Air pipe kit *1
