ANENG ST182 AC DC Digital Clamp Multimeter - Black

Features:

- small volume: easy to carry and use with one hand.

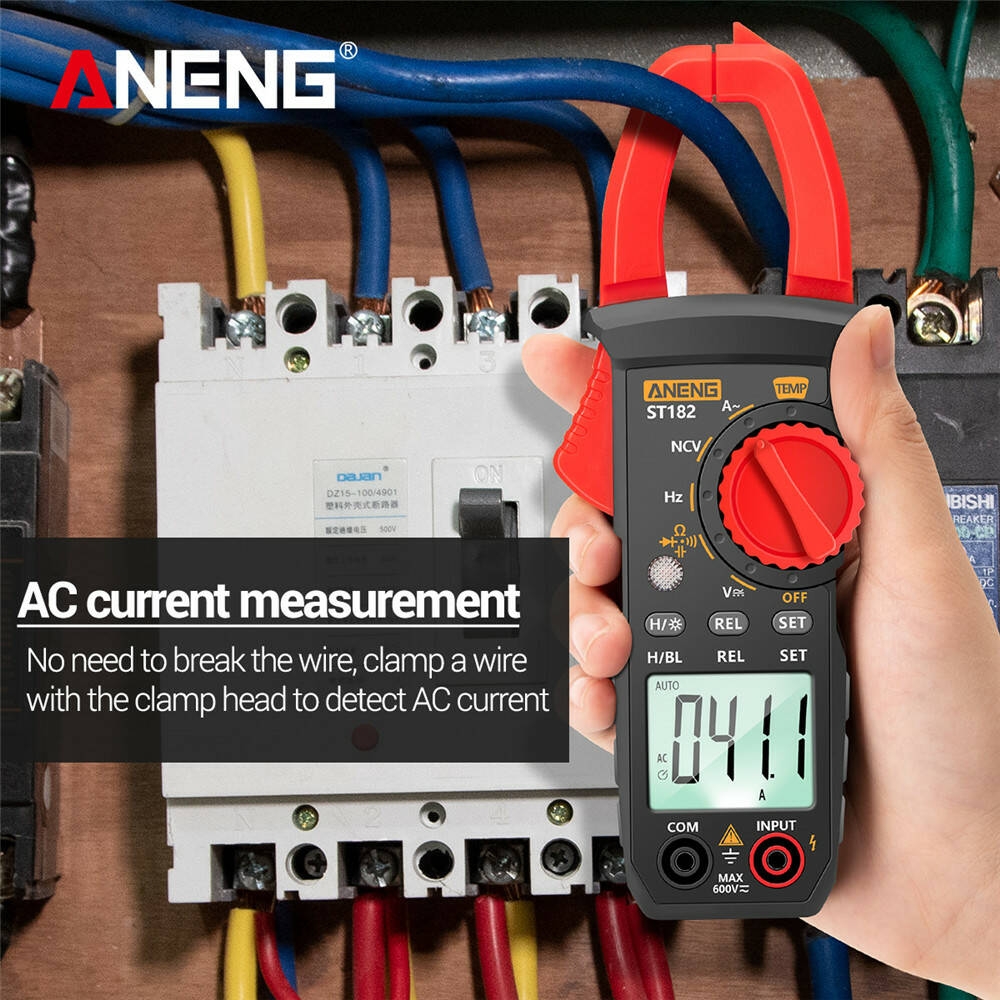

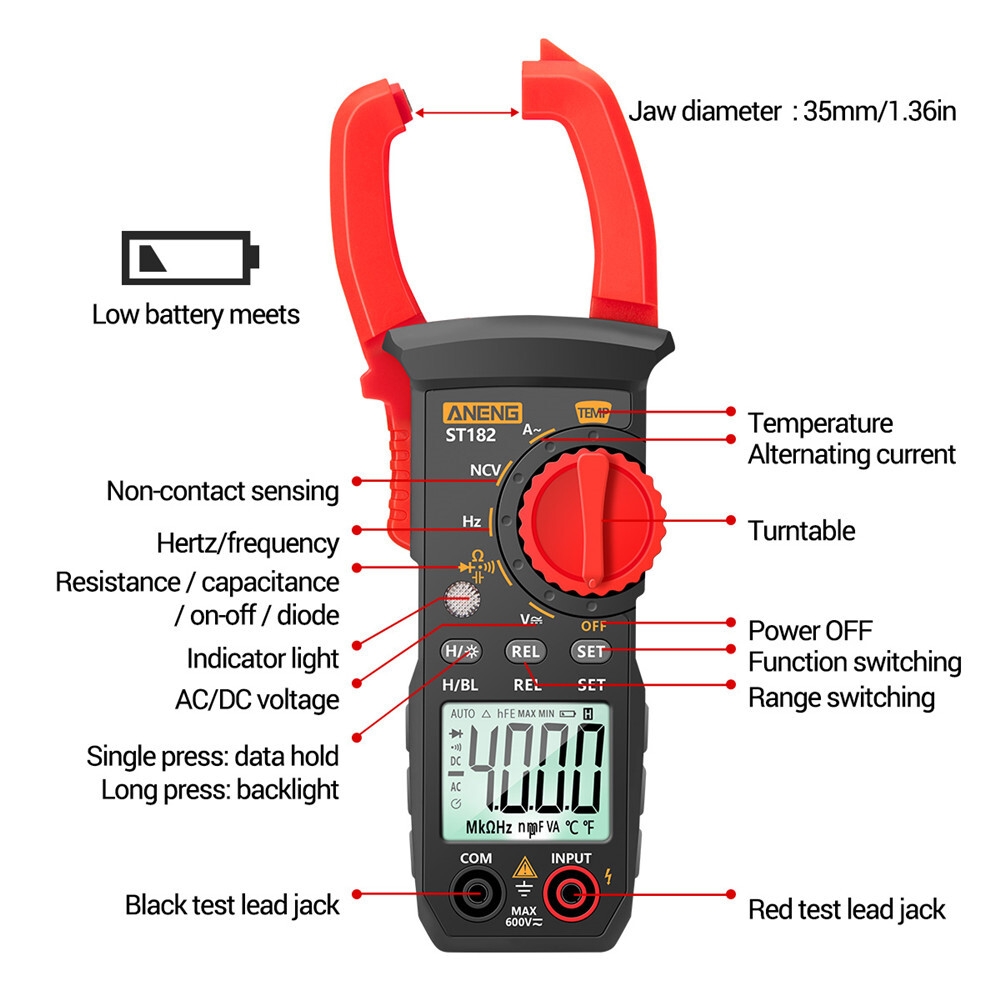

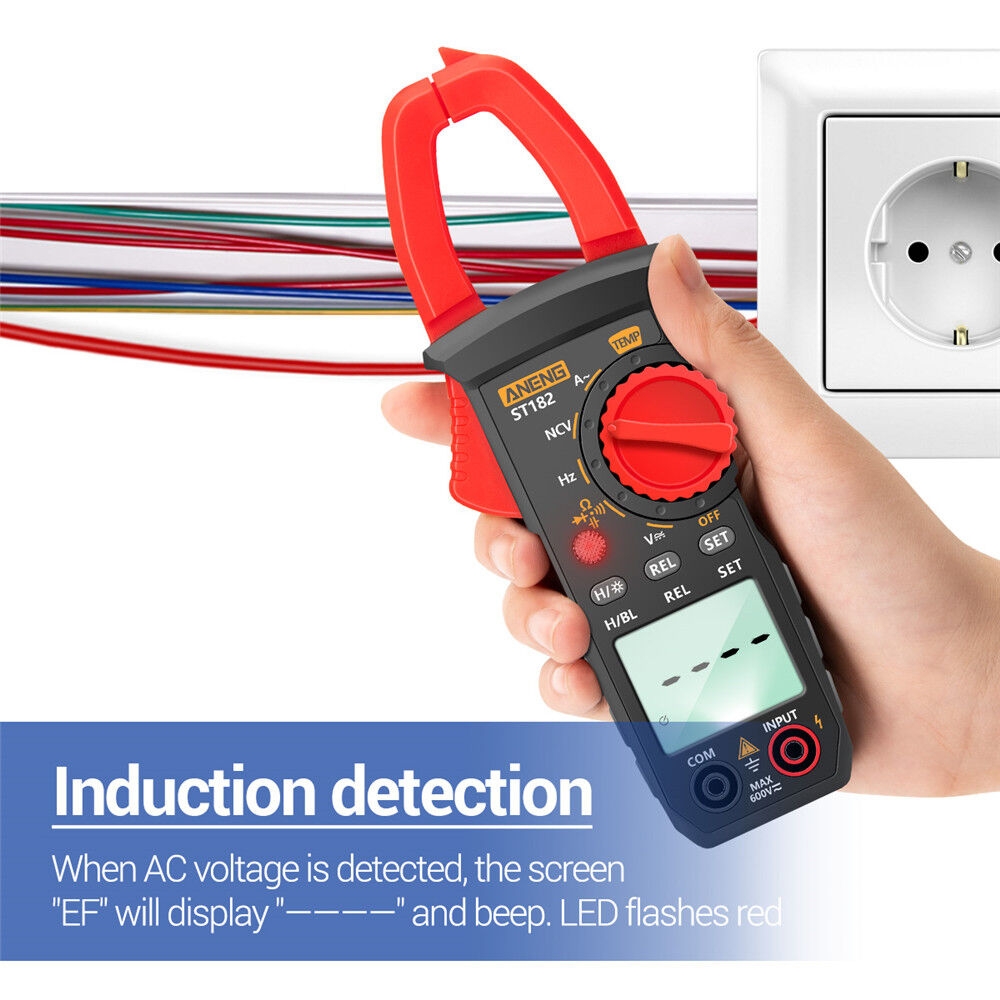

36mm jaw: 36mm jaw, can measure without contact or circuit interruption automatic range: intelligent and efficient operation, obtain scientific and accurate results 400A AC current measurement: 40A ~ 400A ± (2.5% + 3) wide range measurement, applicable to various wires, Convenient and accurate non-contact voltage detection NCV: If you want to detect AC voltage or electromagnetic field in space, you can close the front end of the instrument clamp to the tested object. When beep, the NCV lamp will flash data hold function: hold the measurement data to check or observe the data backlight function: LCD screen with backlight clearly displays the data low voltage hint: the battery should be replaced timely when the low power symbol appears. Insufficient power may affect the measurement accuracy. Automatic shutdown: If the instrument does not operate within 15 minutes, it will automatically shut down. Accessories: 2 pairs of test probes are provided for easy measurement. The black zip bag is easy to store and carry, and allows multifunctional measurements: AC/DC voltage, AC current, resistance, capacitance, frequency, temperature, NCV test, DIODE, ON/OFF test.

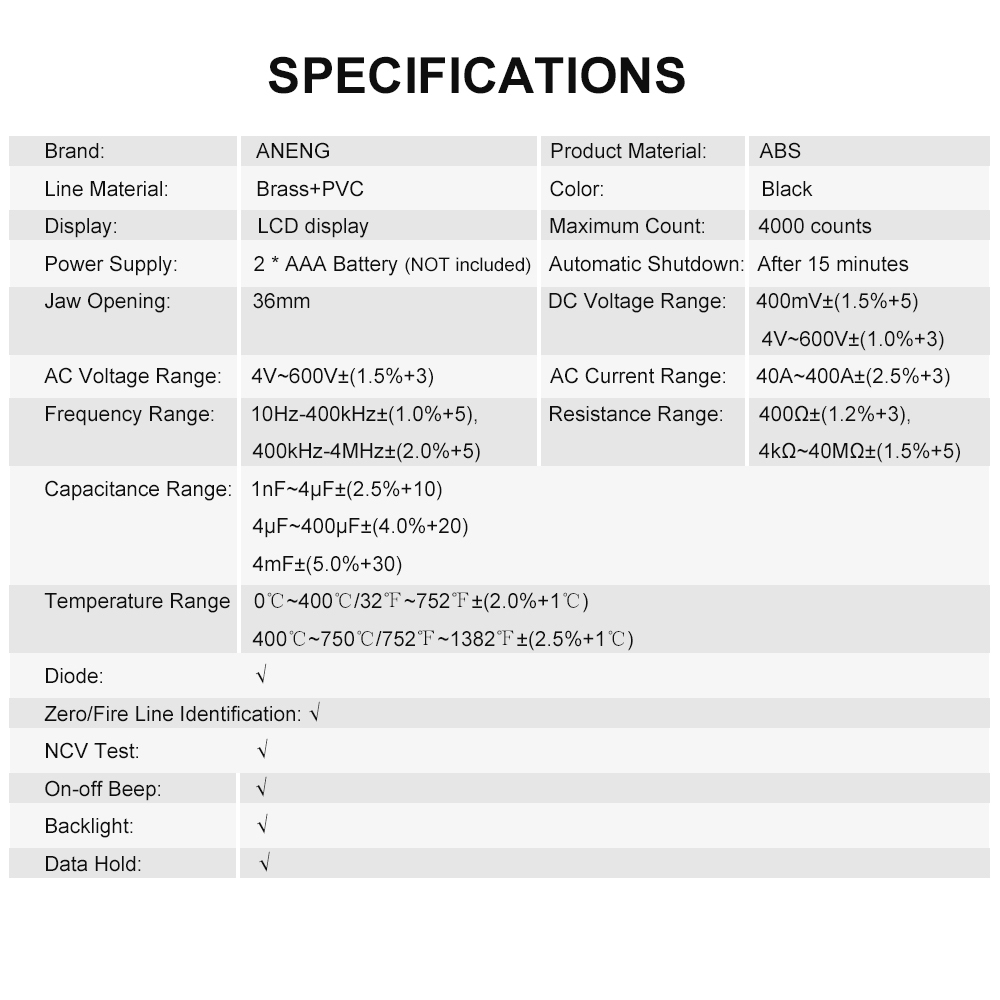

Specifications:

Product material: ABS series

Material: bra + PVC

Color: black

Power supply: 2 * AAA battery (excluding)

Automatic shutdown:

Display after 15 minutes:

LCD display maximum number: 4000 count

Jaw opening: 36MM

DC voltage range: 400mv ± (1.5% + 5), 4V ~ 600V ± (1.0% + 3)

AC voltage range: 4V ~ 600V ± (1.5% + 3400khz - 4mhz ± (2.0% + 5) ℉ ~ 752. ℉ ± (2.0% + 1 °C), 400 °C ~ 750 °C / 752 ℉ ~ 1382. ℉ ± (2.5% + 1 °C) Diode: √ Zero line / with wire identification: √

NCV test: √

Switching buzzer: √

Backlight: √

Data retention: √

Product size: about 184 * 64.5 * 32mm / 7.24 * 2.54 * 1.26in

Product weight: about 129g / 4.55

OZ package size: about 23.5 * 10 * 4cm / 9.25 * 3.94 * 1.57in

Package weight: about 290g / 10.23 OZ

Note: Please read the user manual before use.

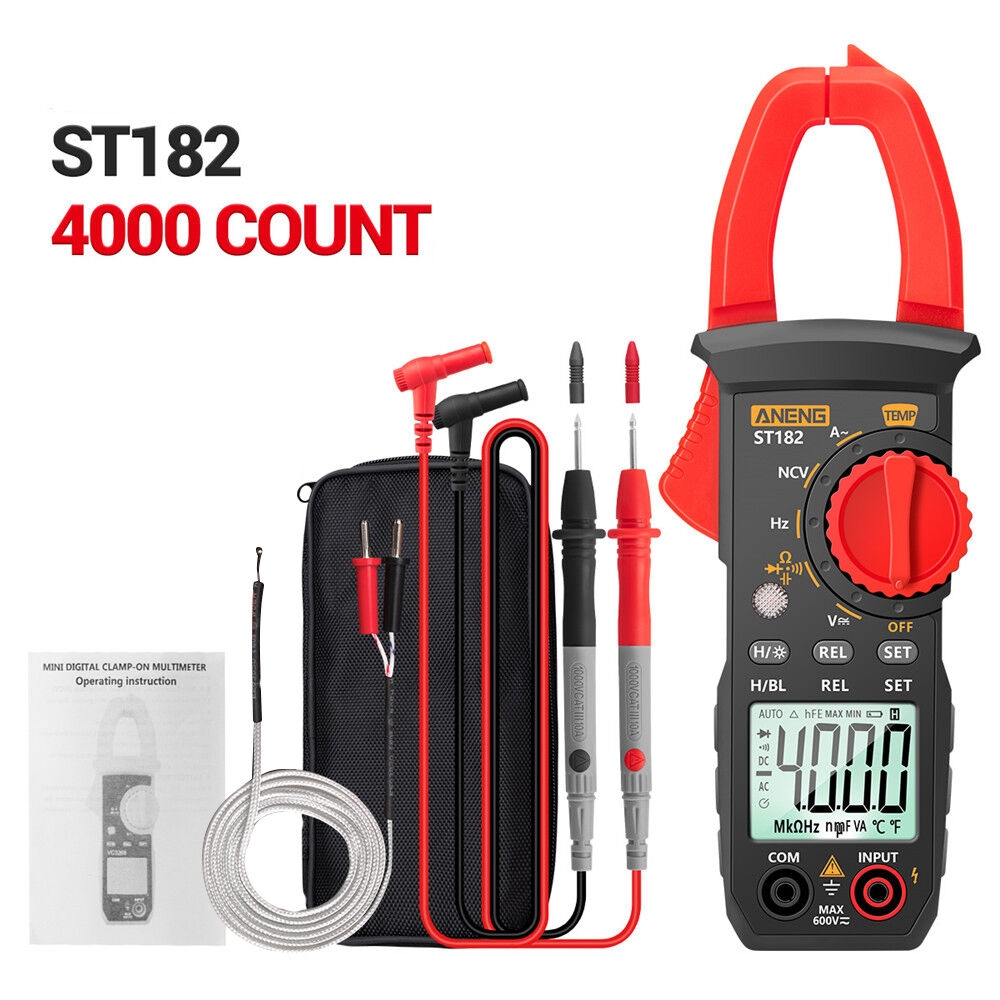

Packing List: 1 * Clamp 2 * Test Lead 1 * Storage Bag 1 * User's Manual (English)
