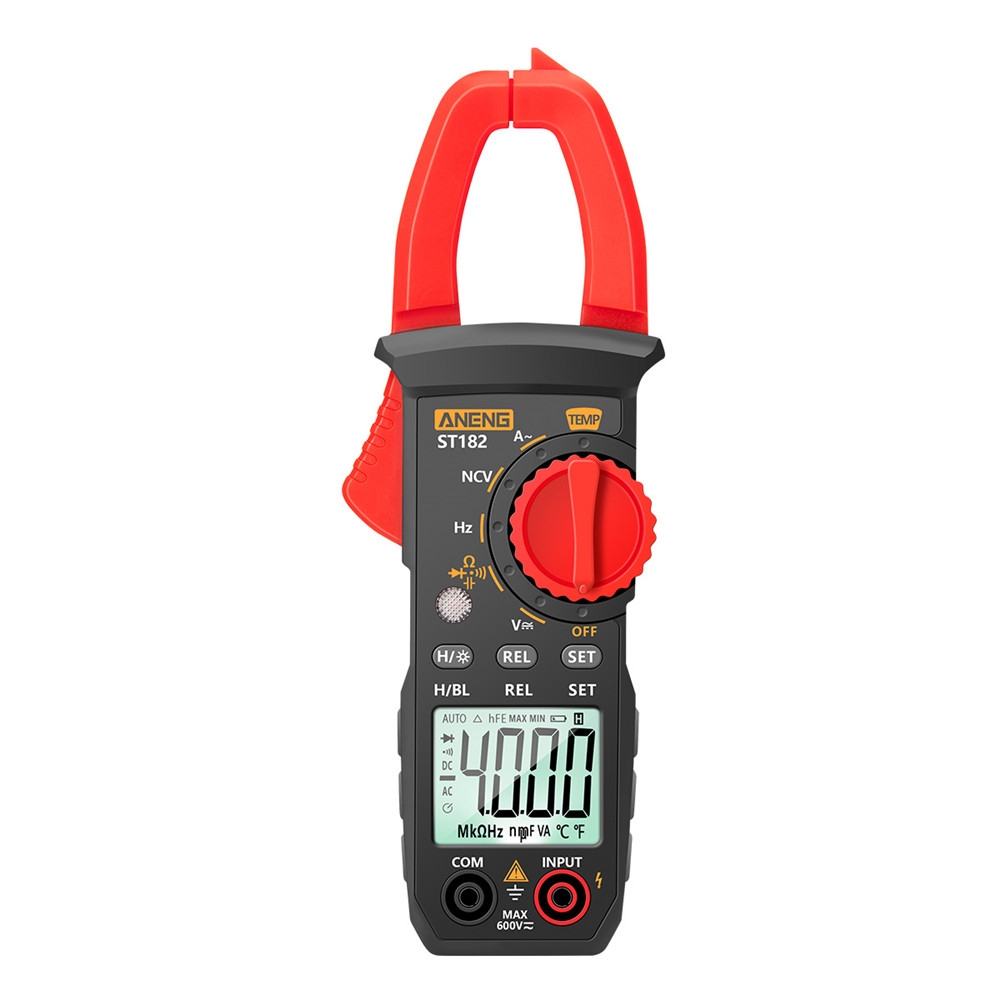

ANENG ST182 AC DC Digital Clamp on Multimeter - Black

characteristic:

-Compact size: easy to carry and use with one hand.

-36mm jaw opening: 36mm large jaw opening, which can be used for measurement without contacting or interrupting the circuit Automatic range: intelligent and efficient operation, obtaining scientific and accurate results 400A AC current measurement: 40A~400A ± (2.5%+3) wide range measurement, applicable to all kinds of wires, convenient and accurate NCV non-contact voltage detection: if you want to detect whether there is AC voltage or electromagnetic field in the space, you can close the front end of the instrument clamp to the object to be measured. If there is a beep, the NCV lamp will flash Data holding function: keep the measured data for checking or observing the data Backlight function: LCD screen with backlight for clear data display Low voltage prompt: when the low power symbol appears, the battery needs to be replaced in time. Inadequate power may affect the accuracy of the measurement results. Automatic shutdown: if the instrument is not operated within 15 minutes, it will automatically shut down. Accessories: 2 pairs of test probes are equipped for easy measurement. The black zipper bag is easy to store and carry for multi-function measurement: AC/DC voltage, AC current, resistance, capacitance, frequency, temperature, NCV test, diode, on-off test.

Specifications:

Product material: ABS series

Material: bra+PVC

Color: black

Power supply: 2 * AAA battery (excluding) Automatic shutdown: display after 15 minutes: LCD display maximum count: 4000 Counting jaw opening: 36mm DC voltage range: 400mV ± (1.5%+5), 4V~600V ± (1.0%+3) AC voltage range: 4V~600V ± (1.5%+3400kHz-4MHz ± (2.0%+5) Electrical resistance range: 400 Ω± (1.2%+3), 4k Ω~40M Ω± (1.5%+5 ℉~752 ℉ ± (2.0%+1 ℃), 400 ℃~750 ℃/752 ℉~1382 ℉ ± (2.5%+1 ℃) Diode: √ Zero wire/live wire identification: √ NCV test: √ Switch buzzer: √ Backlight: √ Data retention: √ Product size: about 184 * 64.5 * 32mm/7.24 * 2.54 * 1.26 inch Product weight: about 129g/4.55 ounce Package size: about 23.5 * 10 * 4cm/9.25 * 3.94 * 1.57 inch Package weight: about 290g/10.23 ounce Note: please read the user manual before use.

Packing list: 1 * clamp instrument 2 * test lead 1 * storage bag 1 * user manual (English version)
