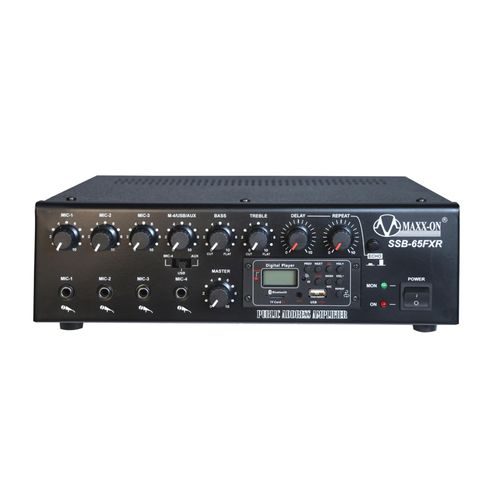

MAXX-ON MSSB-65FXR 65W RMS Echo USB Recording PA Amplifier with Bluetooth

MAXX-ON MSSB-65FXR 65W RMS Echo USB Recording Amplifier – Detailed Product Description

The MAXX-ON MSSB-65FXR Echo USB Recording Amplifier is designed for public address (PA) systems, announcements, presentations, and general sound reinforcement applications. With a rated output of 65W RMS, this amplifier combines multiple audio inputs, digital music playback, sound adjustment controls, and flexible power options in a single unit. It is suitable for users who need a versatile amplifier for compatible speakers and audio equipment.

Powerful and Clear Audio Performance

The MAXX-ON MSSB-65FXR delivers 65W RMS rated output, providing amplification for compatible public address and audio setups. Its bass and treble controls allow users to adjust low- and high-frequency sound according to their listening environment and preferences. The amplifier also features a low-cut facility on specified microphone inputs to help reduce unwanted low-frequency noise.

Multiple Microphone Inputs

Equipped with four microphone inputs and an auxiliary input, the amplifier allows multiple audio sources to be connected for announcements, presentations, and vocal applications. Its built-in digital echo effect on Mic-4 provides an echo option for suitable voice applications. Mic-3 can also be configured as an alternative to the auxiliary input, offering additional flexibility when connecting audio sources.

Convenient Digital Music Playback

The built-in digital player supports MP3 audio playback through compatible USB drives and SD cards. Bluetooth 4.0 connectivity enables wireless audio streaming from compatible devices, while the AUX input supports external audio sources. These features make it convenient to play music and other audio content without requiring a separate media player.

Flexible Speaker Connectivity

The amplifier supports 4Ω and 8Ω low-impedance speaker connections, as well as 70V and 100V line outputs for compatible distributed public address systems. This flexibility makes it useful for a variety of sound installations, provided the speaker connections and total load are correctly matched to the selected output.

AC and DC Power Options

The MAXX-ON MSSB-65FXR operates on a 220–240V AC mains supply and also supports a 12V DC car-battery supply. Its automatic transfer to DC power when AC power fails provides a useful backup option where a suitable battery is available and correctly connected.

External Equipment Support

Pre-amplifier and line outputs allow connection to compatible external audio equipment, including booster amplifiers and recording systems. These connections provide additional flexibility for users who need to expand their audio setup.

Ideal Applications

The MAXX-ON MSSB-65FXR can be considered for:

Public address and announcement systems

Educational and presentation environments

Offices, shops, and commercial premises

Small venues and meeting spaces

Compatible distributed speaker installations

General voice and music amplification

Product Specifications

• Brand: MAXX-ON
• Model: MSSB-65FXR
• Product type: Echo USB Recording Amplifier
• Rated output: 65W RMS
• Maximum output: 90W
• Microphone inputs: 4
• Digital playback: MP3 via USB and SD card
• Wireless connectivity: Bluetooth 4.0
• Audio controls: Bass and treble
• Speaker outputs: 4Ω, 8Ω, 70V and 100V
• Power supply: 220–240V AC or 12V DC
• Net weight: 6.3 kg (manufacturer-listed)

The MAXX-ON MSSB-65FXR offers a practical combination of microphone connectivity, digital playback, adjustable sound, and flexible speaker connections for compatible PA applications. Its range of input and power options makes it a versatile choice for everyday announcement and audio amplification needs.
