Mini Hd 4K 60Hz Hdmi Usb 3.0 Video Capture Card

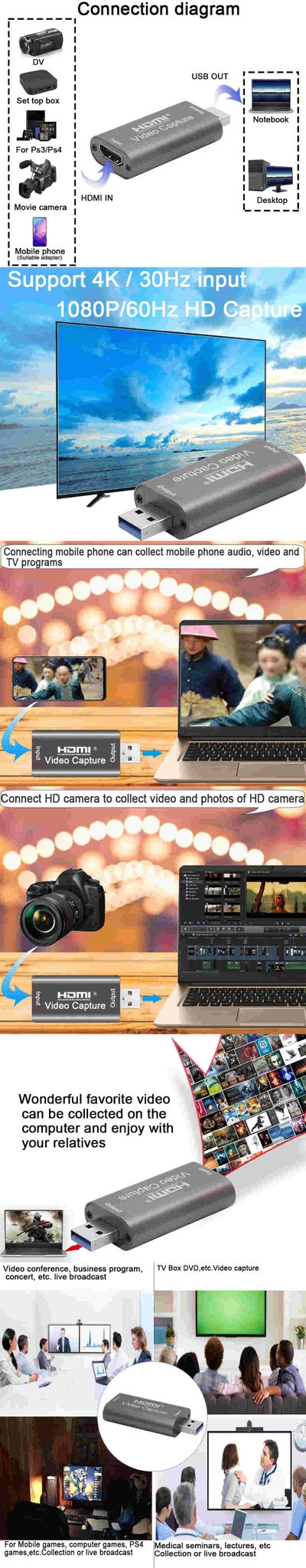

Important tips:The coffee capture card is USB3.0 physical interface, the capture chips are USB2.0; Maximum output 1080P / 60HzNsendato Video Capture can capture both HDMI video and HDMI audio, send audio and video signals to computers and smart phones for preview and storage. Suitable for high definition acquisition, teaching recording, medical imaging, etc.

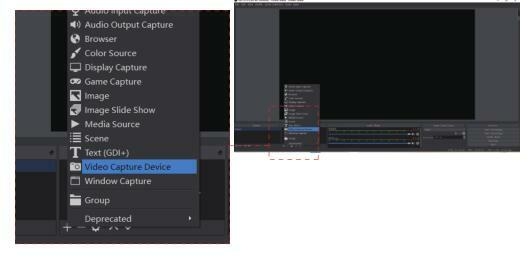

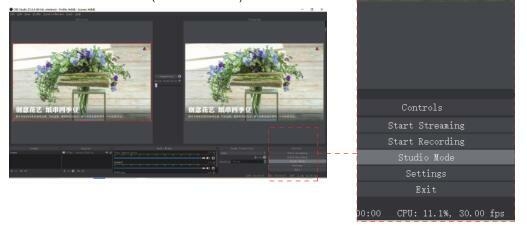

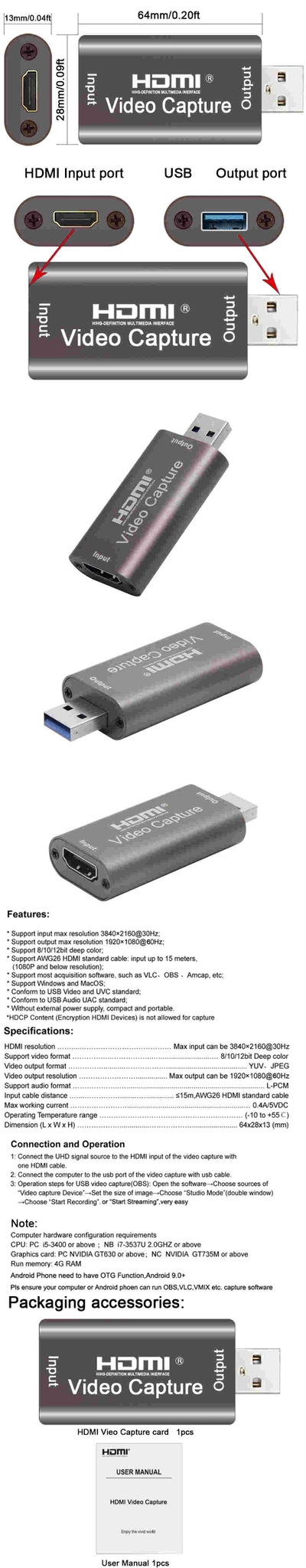

Characteristic:* Support maximum input resolution 3840 × 2160 @ 60Hz;* Support maximum output resolution 1920 × 1080 @ 30Hz;* Support 8/10/12 bit deep color;* Support AWG26 HDMI standard cable: input up to 15 meters, (1080P resolution and below);* Support most acquisition software, such as VLC, OBS, Amcap, etc;* Support for Windows, Android and MacOS;* Comply with USB video and UVC standard;* Compliant with USB audio for UAC standard;* Without external power supply, compact and portable.Specifications:HDMI resolution: maximum input can be 3840 × 2160 @ 30HzSupport video format: 8/10/12 bit deep colorVideo output format: YUV, JPEGVideo output resolution: the maximum output can be 1920 × 1080 @ 30Hz / 60HzSupport audio format: L-PCMInput cable distance: ≤ 15m, AWG26 HDMI standard cableMaximum operating current: 0.4a / 5VDCConnection and operation1: Connect UHD signal source to HDMI input of video capture withAn HDMI cable.2: Connect the computer to the video capture usb port with a usb cable.3: Operation steps for USB video capture (OBS): open the software → Choose the sources of"Video capture device" & rarr; Adjust image size & rarr; Choose "Studio Mode" (double window)& Rarr; Choose "start recording".Example of operation as below1. Add new sources, choose “Nsendato Video Capture Device”2. Réglez la taille de l'image.3. Choisissez «Mode Studio» (double fenêtre).4. Cliquez sur «démarrer l'enregistrement»Notes:Configuration requise pour le matériel informatiqueCPU: PC i5-3400 ou supérieur; NB i7-3537U 2.0GHZ ou supérieurCarte graphique: PC NVIDIA GT630 ou supérieur; NC NVIDIA GT735M ou supérieurMémoire courante: 4G RAM
