Starlink Mini Kit - High Speed Internet Network - White

Starlink Mini is a compact, portable kit that can easily fit in a backpack, designed to provide high-speed, low-latency internet on the go.

Starlink offers high-speed internet almost anywhere across the world. Roam allows for travel anywhere in your country and international trips in live Starlink markets.
Starlink connects within minutes and packs up quickly when it's time to move to your next destination.

Starlink Mini Kit - Setup Guide

1. Download the Starlink App

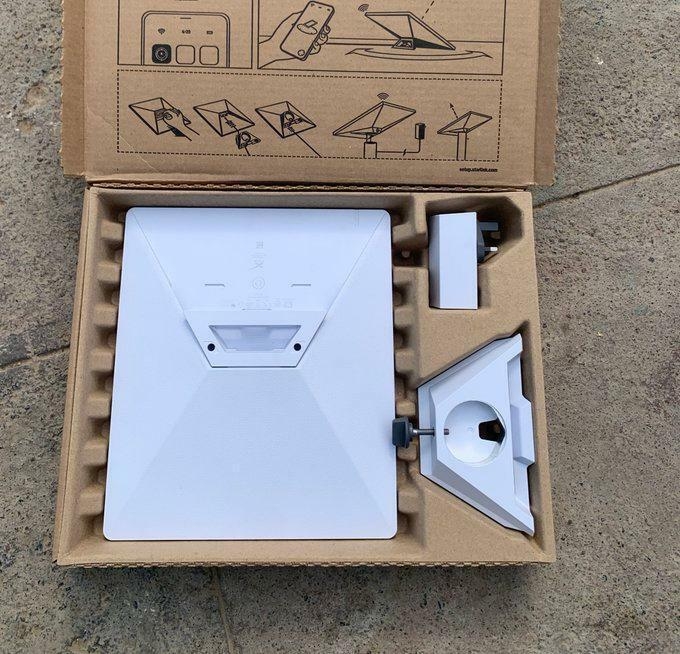

Download the Starlink App and scan the QR code located on the kit packaging to step through the install process.

2. Find A Clear View of the Sky and Check for Obstructions
Your Starlink needs a clear view of the sky so it can stay connected with satellites as they move overhead. Objects that obstruct the connection between your Starlink and the satellite, such as a tree branch, pole, or roof, will cause service interruptions. Use the obstruction tool in the app to ensure you have selected a suitable mounting location. Click here for video guidance on obstructions.

3. Plug in Starlink

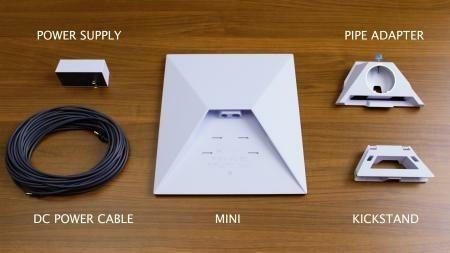

The Starlink Mini has an integrated WiFi router, meaning a separate router is not required to get online. Lift the kickstand and plug one end of the provided cable into your Starlink. Ensure the plug is fully inserted such that the plug face is flush with the surface.
Route the other end of the power cable to your power supply and plug it into a power outlet.

4. Connect to WiFi
  a. On your device, find and connect to the STARLINK network in your WiFi settings
  b. To secure your Starlink WiFi network, use the Starlink App to rename your Starlink WiFi network and create a WiFi password. Open the Starlink App > Settings > Router > enter the desired WiFi network name and password > Save.
This step is optional, but we recommend securing your WiFi network.

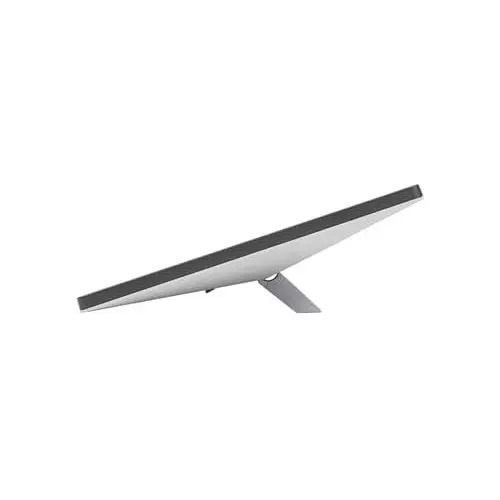

5. Align Starlink. Your Starlink Kit needs to face the right direction to connect to the maximum number of satellites for the strongest connection. Set up Starlink, ensuring the kit is tilted using the kickstand, or use the provided pipe adapter mount if you have a pipe for installation. Click here for additional guidance on the alignment tool.

Specifications

Package Weight: 6.73 kg (14.83 lbs)Package Dimensions: 430 x 334 x 79 mm (16.92 x 13.14 x 3.11 in)Antenna: Electronic Phased ArrayField of View: 110 °Orientation: Software Assisted Manual OrientingWeight: 1.10 kg (2.43 lb)1.16 kg (2.56 lb) with Kickstand1.53 kg (3.37 lb) with Kickstand & 15 m Cable
Environmental Rating: IP67 Type 4 with DC Power Cable and Starlink Plug/Cable installedOperating Temperature: -30°C to 50°C (-22°F to 122°F)Wind Speed: Operational: 96 kph+ (60 mph+)Snow Melt Capability: Up to 25 mm/hour (1 in / hour)Power Consumption: Average: 25-40WInput Rating: 12-48V 60W (12v short Starlink cable coming soon in Shop)USB PD Requirement: 100W, 20V/5A Minimum (with Starlink USB-C to Barrel Jack Cable Accessory)Wi-Fi Technology:802.11a/b/g/n/acGeneration: WiFi 5Radio: Dual Band 3 x 3 MU-MIMOEthernet Ports One (1) Latching Ethernet LAN port with Starlink PlugCoverage Up to 112 m² (1,200 ft²)Security: WPA2Power Indicator: LED, rear face plate, lower left cornerMesh Compatibility: Compatible with all Starlink mesh systems

 *Not compatible with 3rd party mesh systems. Devices: Connect up to 128 devices
