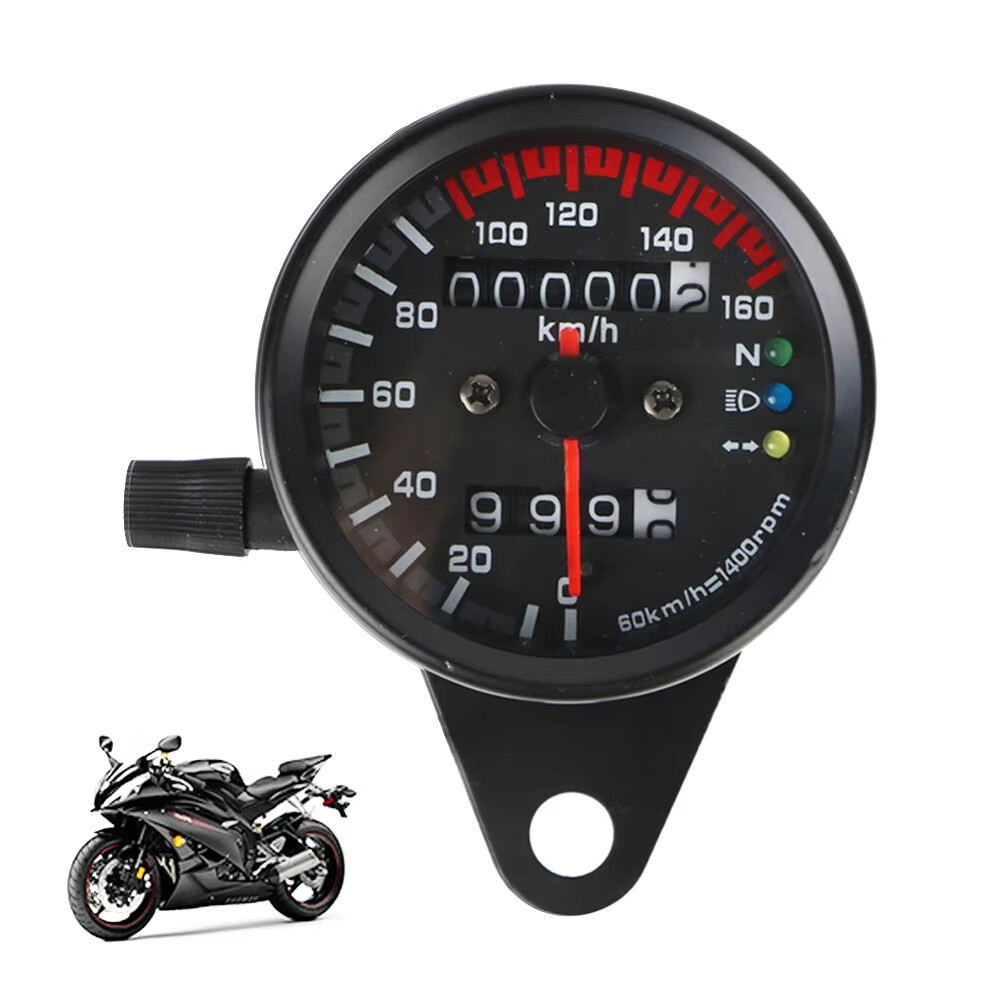

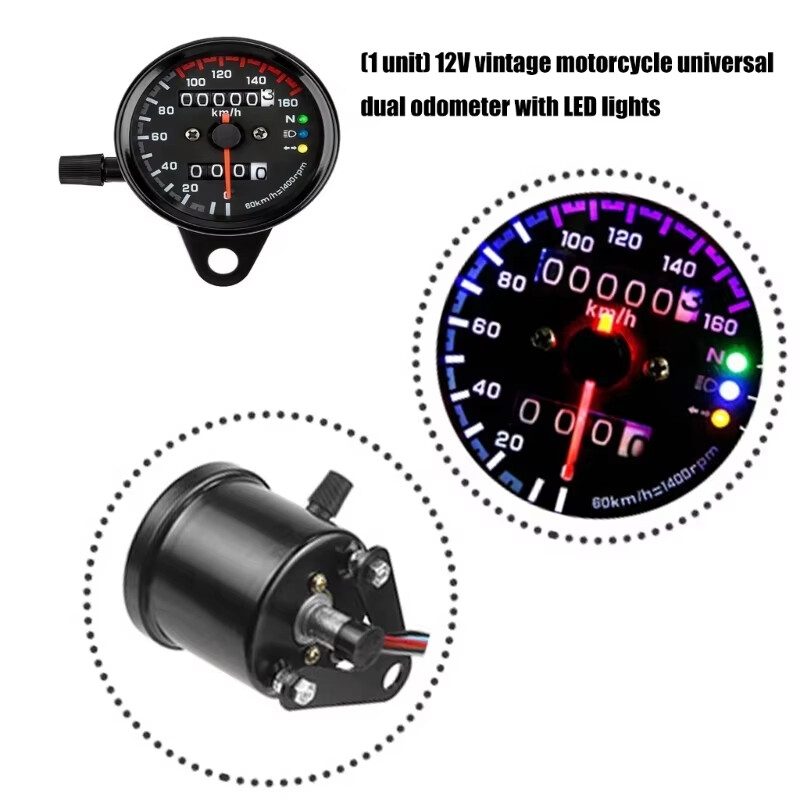

Universal Motorcycle Speedometer Odometer Gauge for Cafe Racer Motorbike with LED Signal Light Backlight Indicator

Features:

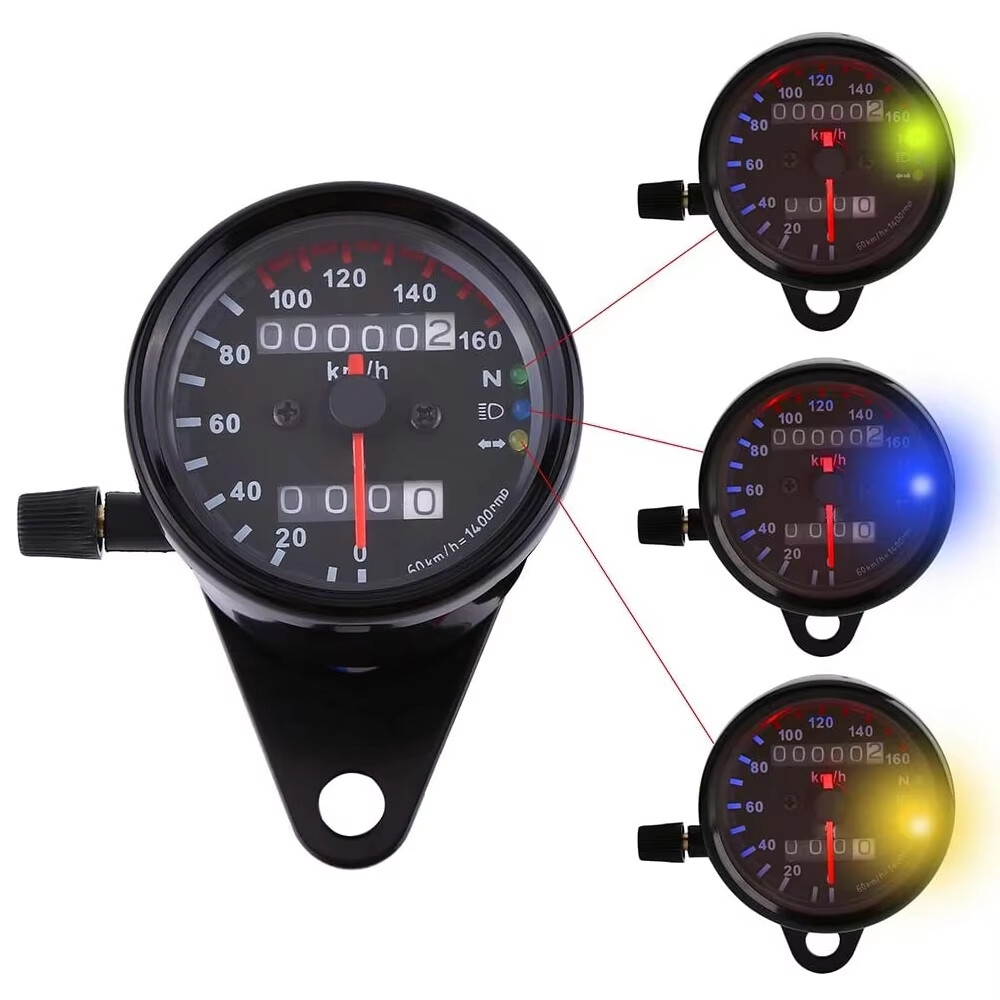

1.Comes with indicator LED light for head lamp neutral position lamp and turn signal lights.
2.High digital reading capacity and practical, could match and replace original equipment perfectly.
3.Easy installation and simple operation, it's precise and always indicates accurate data for drivers.
4.Universal fit for all motorcycles of DC 12V, maximum speed measurement is up to 160 km/h.
5.Professional installation is strongly recommended to avoid trouble or damage caused.

Specifications:
Material: Metal
Color: Black
Voltage: 12V

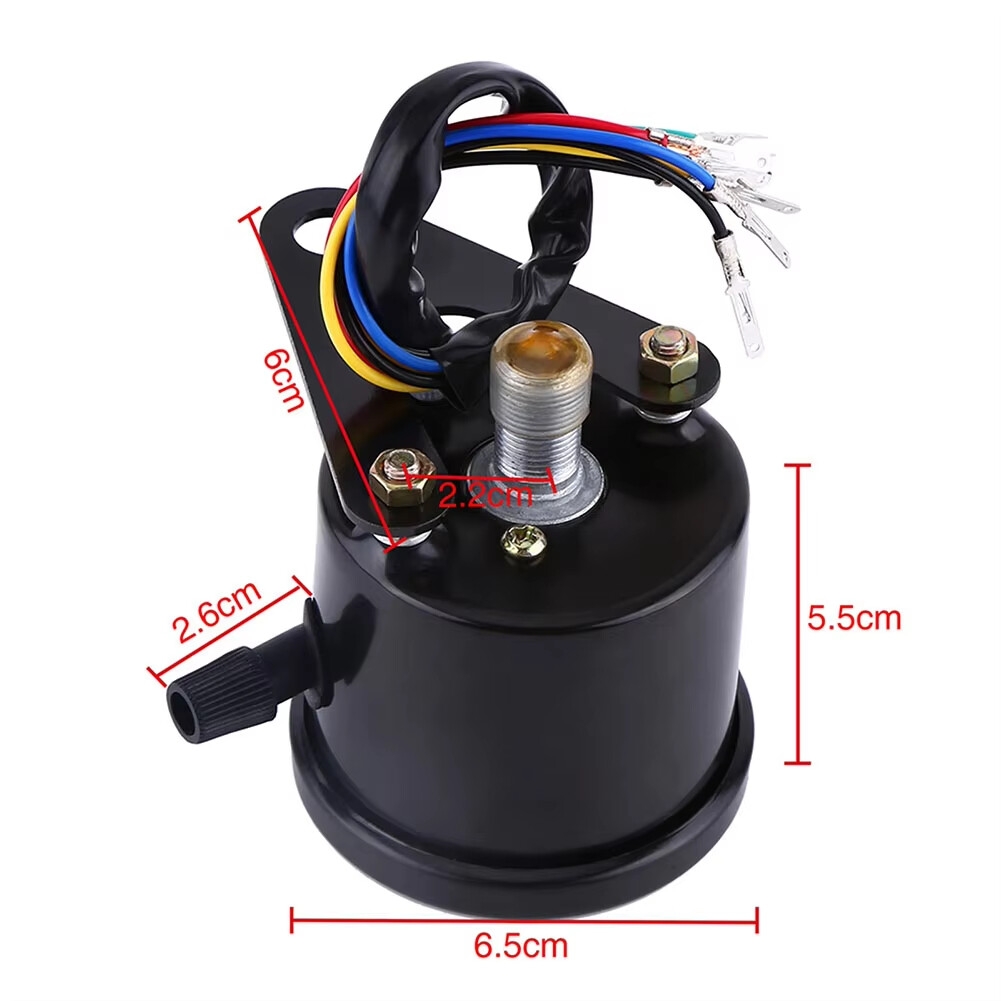

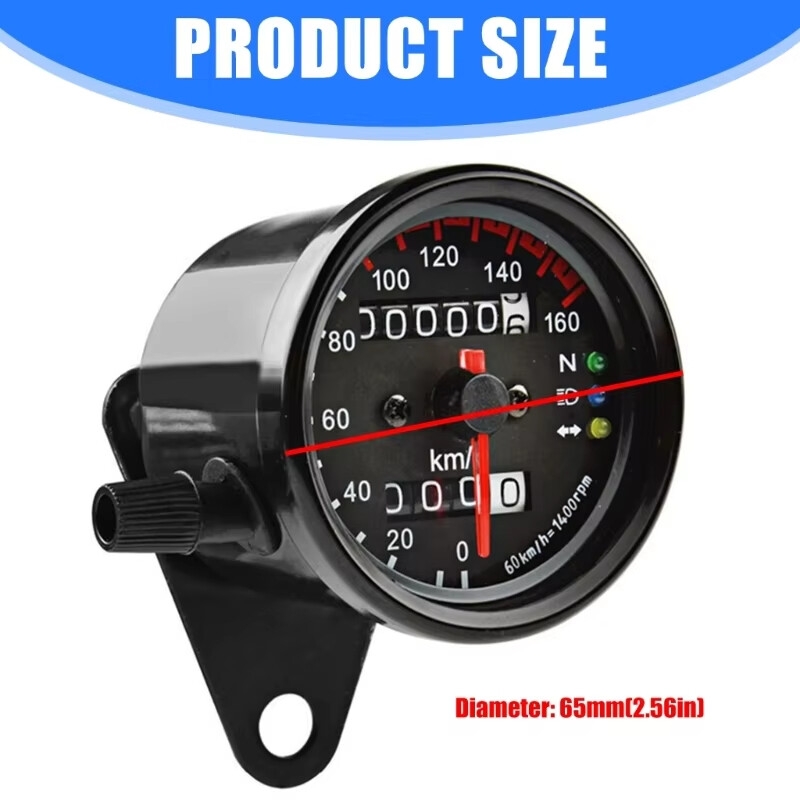

Shell Diameter: 6.5cm / 2.56"
Shell Height: 5.5cm / 2.16"
Fitment: For Most of Motorcycles

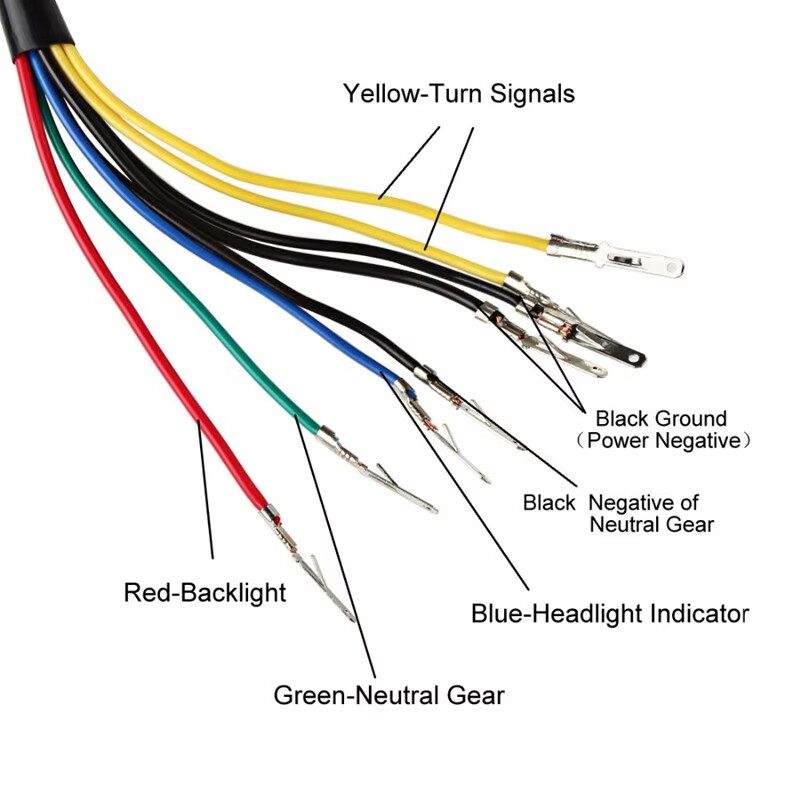

Positive and negative line colors are respectively:
Negative wire (-): all black wire, black and white wire
Positive wire (+): light blue wire, dark blue wire, orange wire, red wire, green wire, black-yellow wire

Instrument function wiring method:
Connect the black and white wire (-) to the red wire (+) = light up the display and pointer
All black wire (-) is connected to orange wire (+) is connected to green wire (+) = empty (N) gear wick is lit
All black wire (-) connected Dark blue wire (+) connected Orange wire (+) = turn left and right wick on
All black wire (-) connected to black and yellow wire (+) = turn on the oil wick

Package Includes:
1 x Motorcycle Odometer
