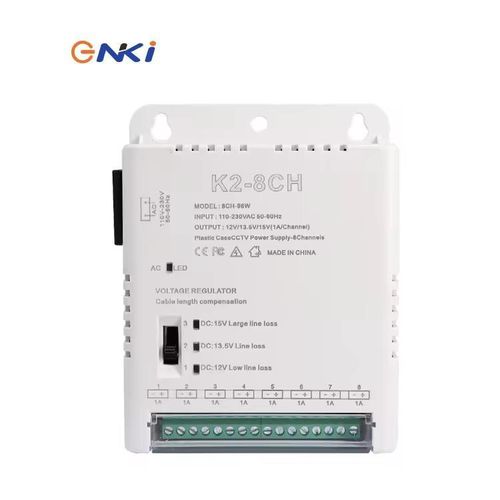

Power supply for CCTV 8 channel

Output

Ripple & Noise: 80MV

DC Adjustable Range: ±10% Rated Voltage

Voltage Tolerance: ±2.0%

Line Regulation: ±0.5%

Load Regulation: ±1%

Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC

AC Input

AC Voltage Range: 100-240VAC

Frequency Range: 47-63Hz

Efficiency:>97%

AC Current: 0.86/115V 0.4A/230V

AC Inrush Current: 20A/115V 40A/230V

Leakage Current< 0.5mA /240VAC

Protection

Over-load: 105%-150% hiccup mode,Auto-recovery

Over-voltage: 115%-135% Cut Off the Output,Auto-recovery

Over-temp. : Shut down O/P voltage, Auto-recovery

Environment

Working temp.: -10~ +60C° (Refer to output load derating curve)

Working Humidity:20 ~ 90% RH, non-condensing

Storage Temp.: -10~ +60C°

Storage Humidity: 10 ~ 95% RH

Safety

Isolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25C°/ 70% RH

Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Safety standards: CE,RoHS,FCC,ISO9001
