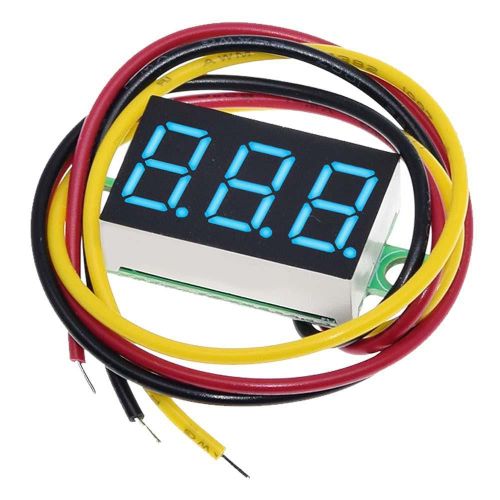

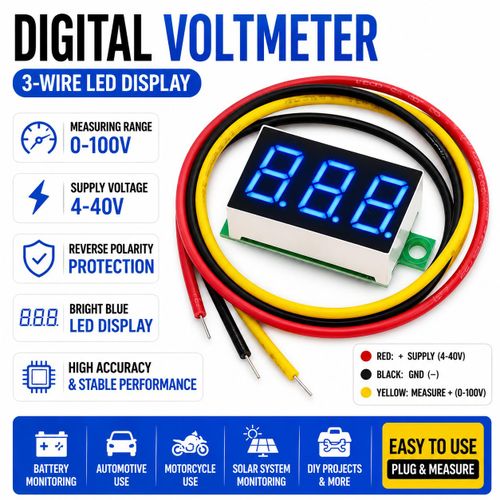

0.28 Inch Mini Digital DC Voltmeter 0-100V LED Panel Meter,Blue

⚠️For DC Voltage Only
⚠️Not For 220V/230V AC Home Socket

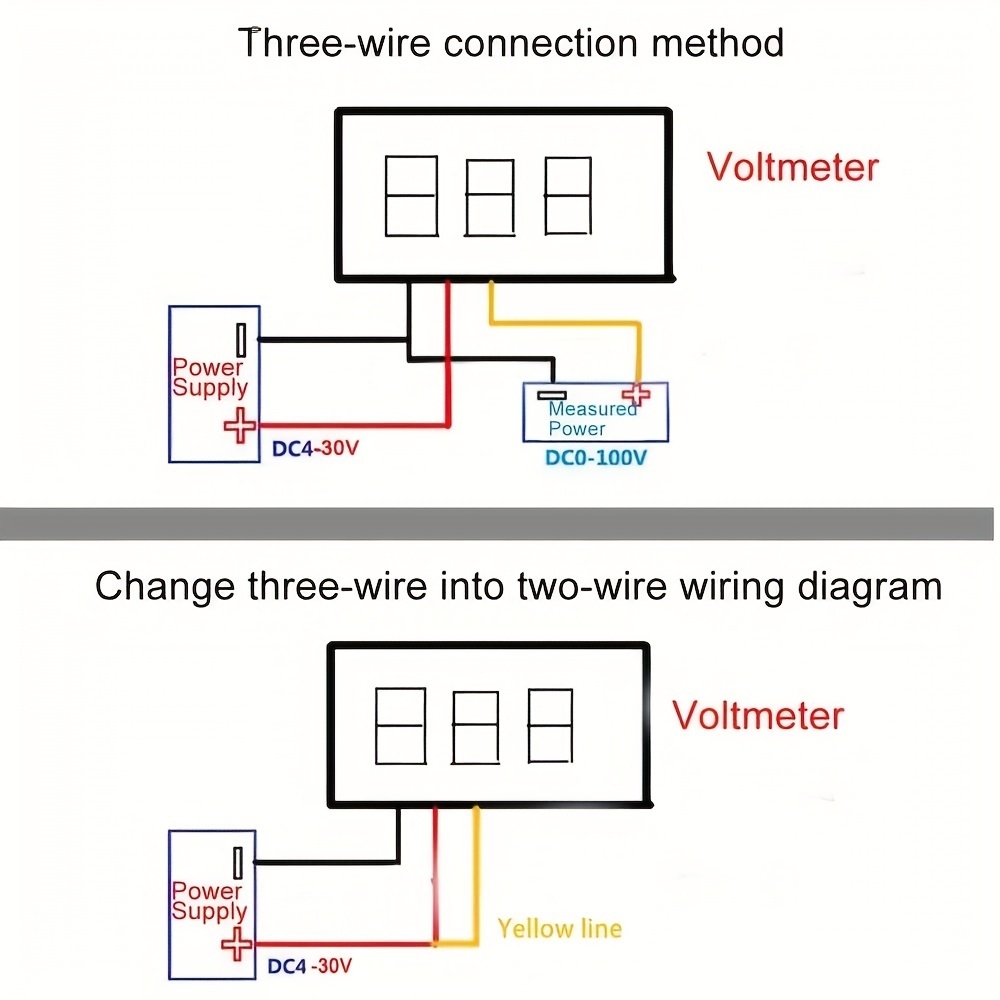

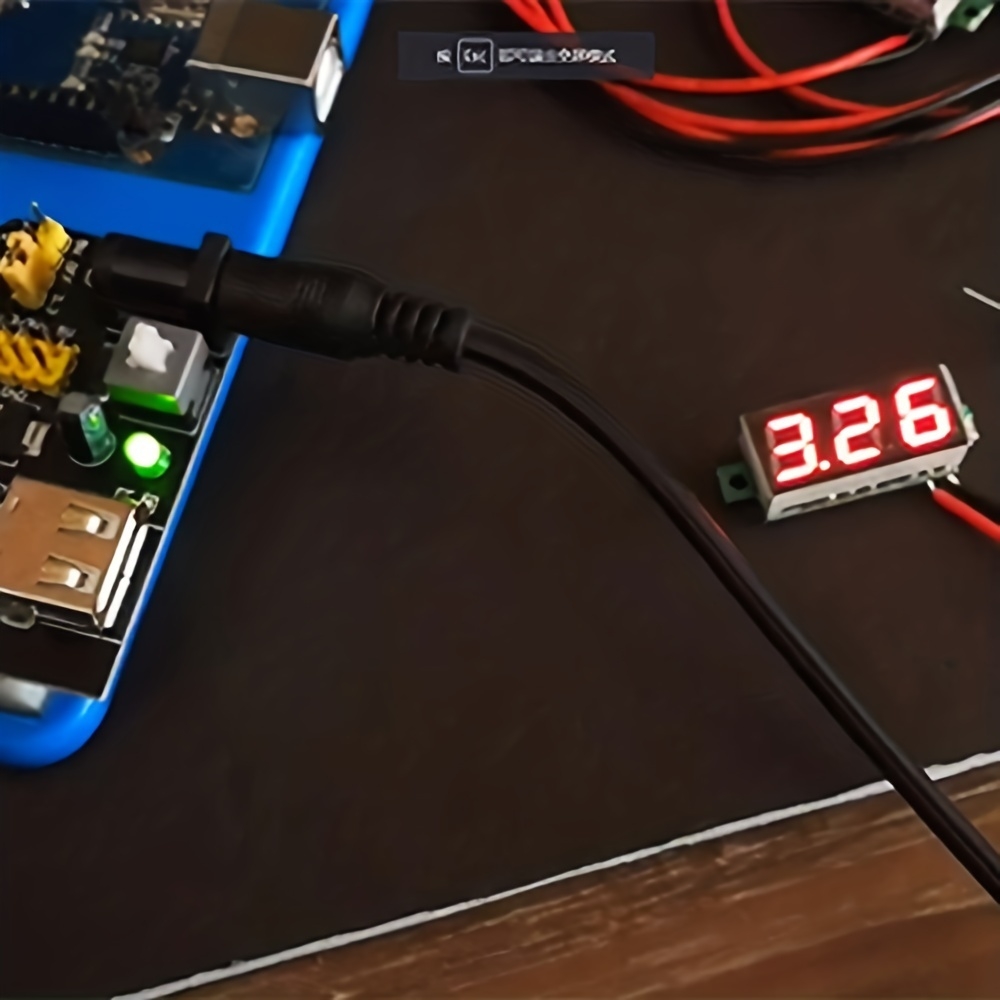

• The voltmeter is small, only 0.28 inches, range DC DC0-100V, 2 and 3-wire generic products, to break the routine voltmeter, is the latest design, can work directly on 5V, 9V, 12V, 24V and other circuits, without regulation. With three wiring, easy access to car / battery car / motorcycle car line, with reverse polarity protection function, line reversed not burn. Used to monitor battery voltage, grasp the battery voltage state, it can also be used for other products voltage measurement applications.
• Feature:
• 1. product stability, high measurement accuracy
• 2. Overall standard size, easy installation
• 3. Power supply protection circuit using a polar
• NOTE: Three-line voltage range 0-100V, but also for the use of second-line voltage is within 40V, otherwise there is a danger of burning.
• Technical Parameters:
• Operating voltage: 4.0 ~ 40V (with a reverse polarity protection function)
• Detection voltage: 0.0 ~ 100V
• Operating Current: <20mA

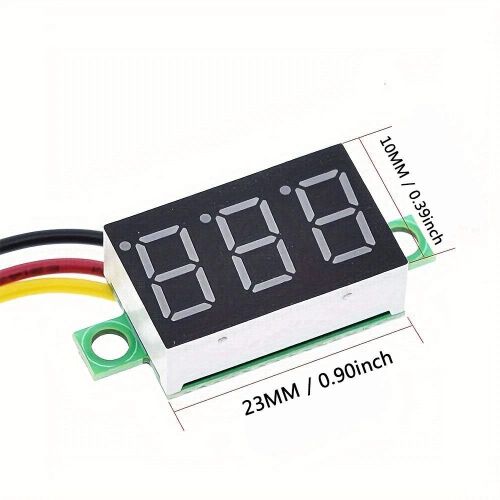

• Display: 0.28 "LED
• Measurement rate: ≥200mS / times
• Accuracy: 3 ‰
• Extreme working conditions
• Low operating voltage: + 4.0V
• Maximum working voltage: + 40V
• Working temperature: -10 ~ + 65
• Humidity: 10 to 80% (non-condensing)
• Working pressure: 80 ~ 106kPa
• Sun exposure: no direct exposure
